Individual hose record
4700790 Hose Repair Specifications
Excavator · Hitachi · ZX470LC-5B · Control Valve
Finished length1,220 mm
Locate this hose

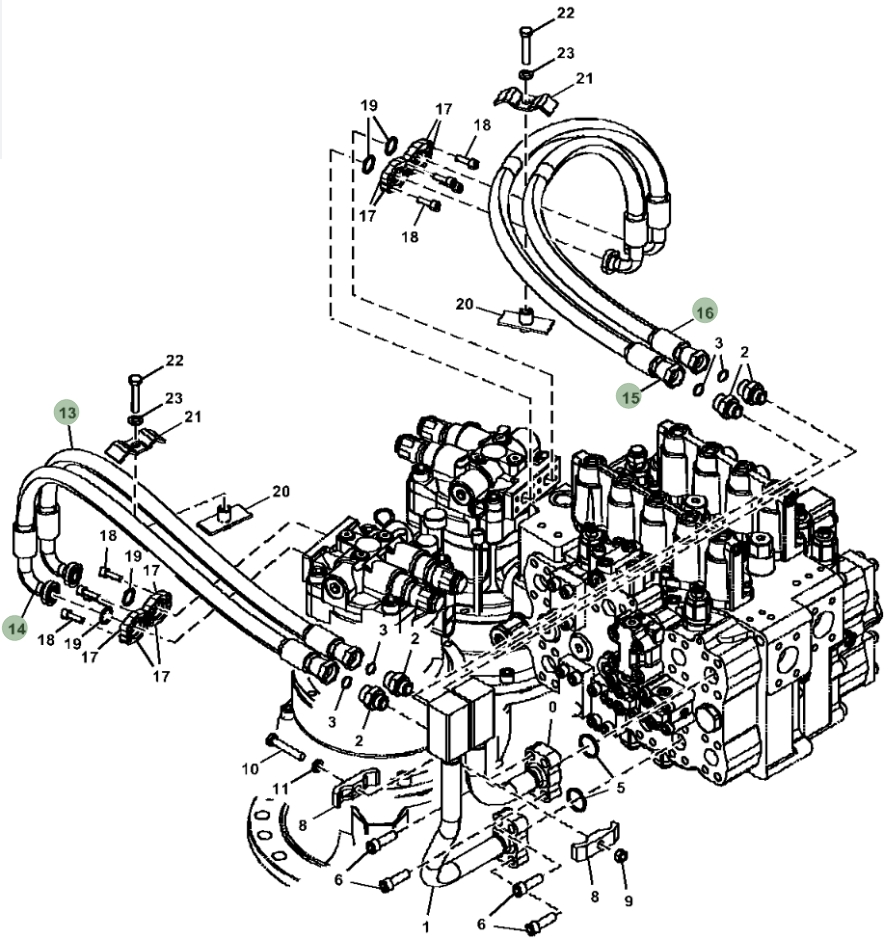

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4700790 before removing the hose.
Repair specifications
- Part number
- 4700790
- Diagram pipe number
- 13
- Installation route
- 分配阀~回转马达(左)
- Hose specification
- DN19;4SH-12;42MPa
- Finished length
- 1,220 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
- Quantity
- 1
