Individual hose record
4427351 Hose Repair Specifications
Excavator · Hitachi · ZX210W-3 · Control Valve
Finished length450 mm
Locate this hose

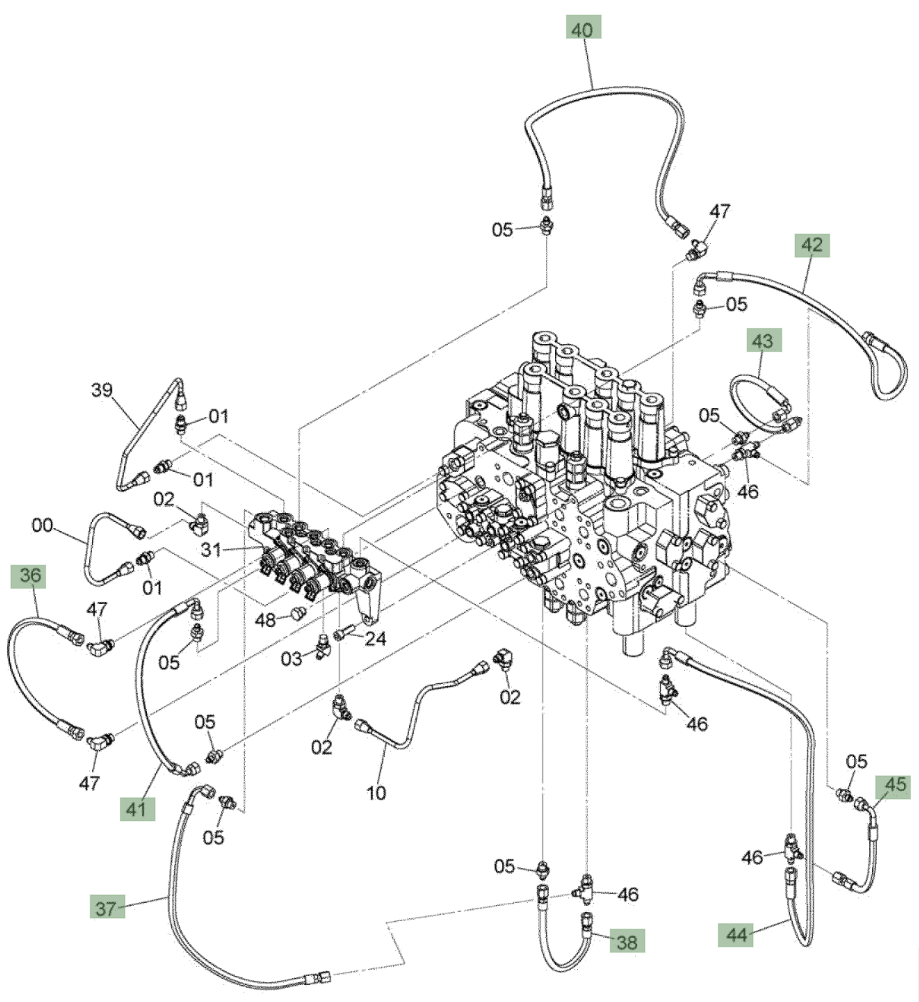

Installation diagram — Pipe No. 43
Locate Pipe No. 43 in the diagram, then confirm part number 4427351 before removing the hose.
Repair specifications
- Part number
- 4427351
- Diagram pipe number
- 43
- Installation route
- 分配阀左~分配阀左
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 450 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 90°美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
