Individual hose record

DS2016113 Hose Repair Specifications

Excavator · Doosan · DX140LC · Hydraulic Pump

Finished length1,000 mm

Locate this hose

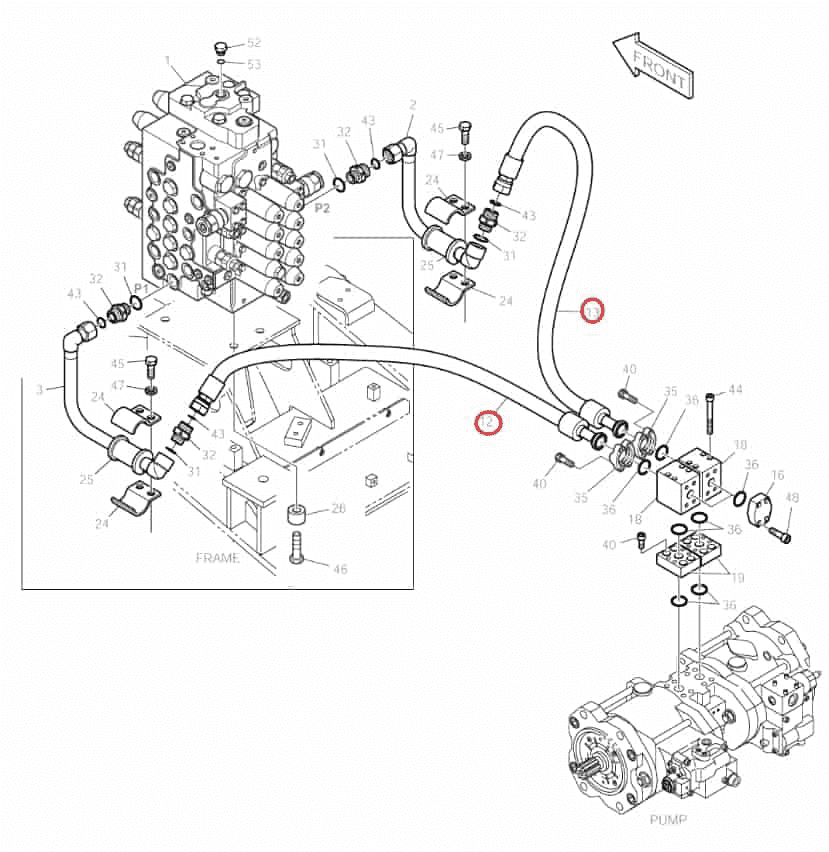

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number DS2016113 before removing the hose.

Part number: DS2016113
Diagram pipe number: 13
Installation route: 液压泵~分配阀P2口
Hose specification: DN19;4SH-12;42MPa
Finished length: 1,000 mm
Working pressure: 42 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 48

Installation route: 液压泵B3口~吸油铁管

Length: 480 mm
Specification: DN25;1SN-16;8.8MPa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 47

Installation route: 液压泵DR1口~回油铁管(液压油箱)

Length: 820 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 47

Installation route: 液压泵DR1口~回油铁管(液压油箱)

Length: 950 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
