Individual hose record
4438258 Hose Repair Specifications
Excavator · Hitachi · ZX160LC-6N · Control Lever
Finished length2,800 mm
Locate this hose

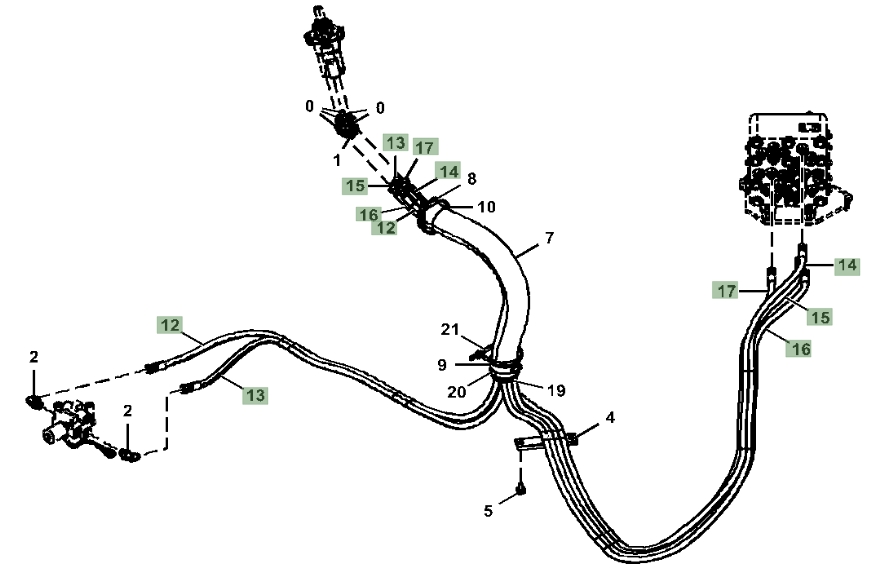

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 4438258 before removing the hose.
Repair specifications
- Part number
- 4438258
- Diagram pipe number
- 14
- Installation route
- 右手柄~中转接头
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,800 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
