Individual hose record
4696560 Hose Repair Specifications
Excavator · Hitachi · ZX60USB-5N · Control Valve
Finished length1,200 mm
Locate this hose

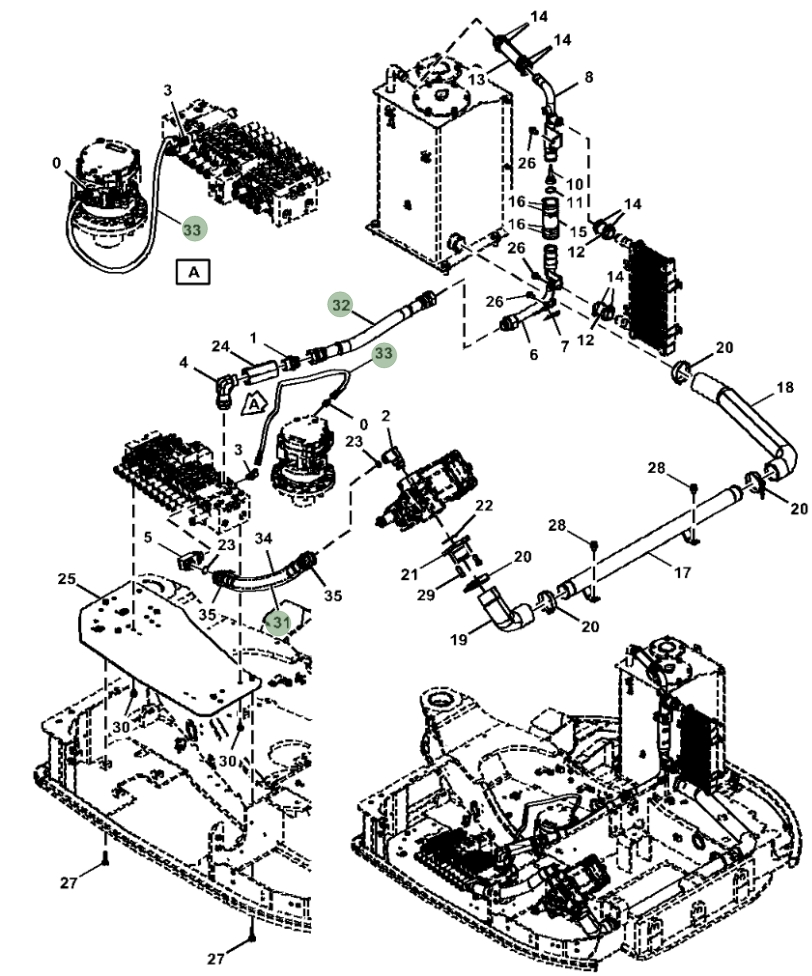

Installation diagram — Pipe No. 33
Locate Pipe No. 33 in the diagram, then confirm part number 4696560 before removing the hose.
Repair specifications
- Part number
- 4696560
- Diagram pipe number
- 33
- Installation route
- 分配阀左前~回转马达
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,200 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
