Individual hose record

157853A1 Hose Repair Specifications

Excavator · Case · CX180 · Attachments – Breaker

Finished length2,050 mm

Locate this hose

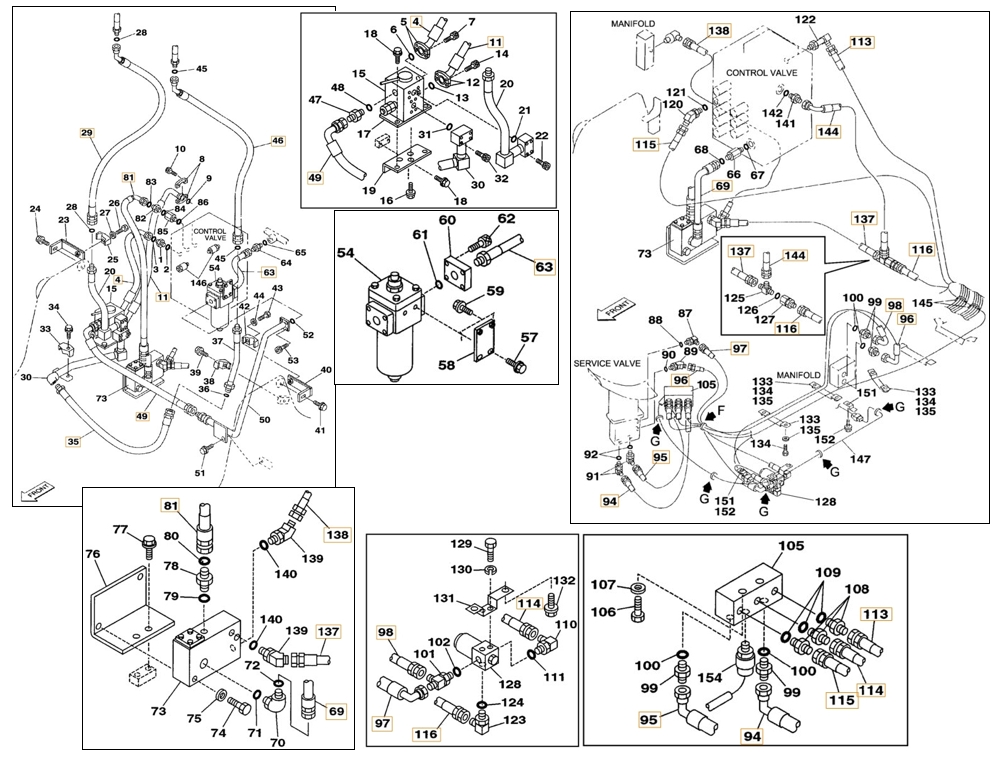

Installation diagram — Pipe No. 116

Locate Pipe No. 116 in the diagram, then confirm part number 157853A1 before removing the hose.

Part number: 157853A1
Diagram pipe number: 116
Installation route: 电磁阀(破碎器)~三通接头
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,050 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 72

Installation route: 驾驶室压力开关(破碎器)~分配阀后

Length: 3,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 98

Installation route: 电磁阀(破碎器)~进回油阀

Length: 850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 73

Installation route: 破碎器踏板~进回油阀

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 114

Installation route: 破碎器前置压力开关~破碎器前置电磁阀

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 65

Installation route: 破碎器踏板~过渡阀(破碎器踏板)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 74

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
