Individual hose record
4636895 Hose Repair Specifications
Excavator · Hitachi · ZX210F-3 · Swivel Joint
Finished length2,250 mm
Locate this hose

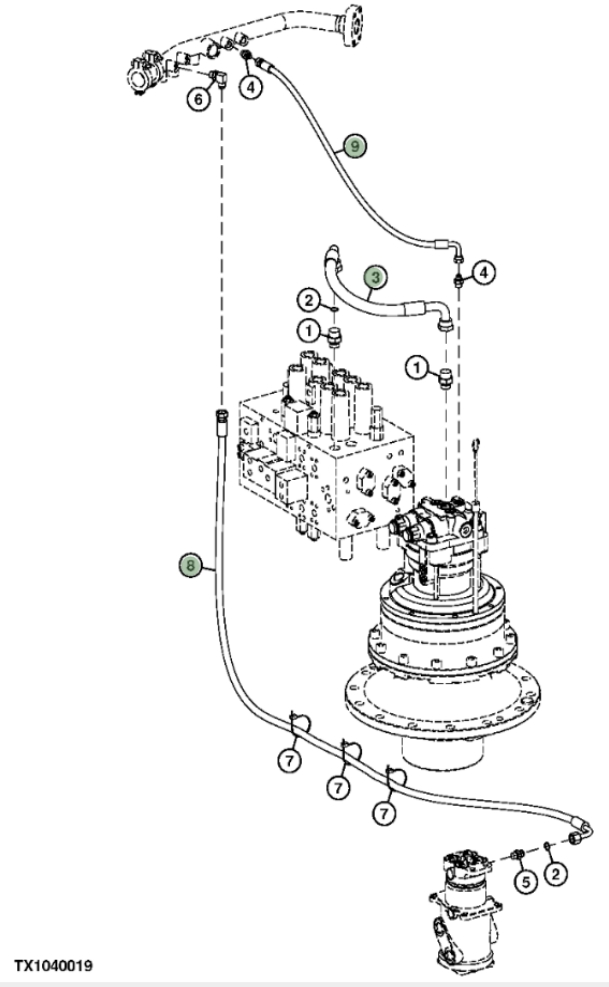

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4636895 before removing the hose.
Repair specifications
- Part number
- 4636895
- Diagram pipe number
- 8
- Installation route
- 回转接头~回油铁管(液压油箱)
- Hose specification
- DN12;1SN-08;7Mpa
- Finished length
- 2,250 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
