Individual hose record

DS2094502 Hose Repair Specifications

Excavator · Doosan · DX85R-3 · Attachments – Lock Valve

Finished length3,640 mm

Locate this hose

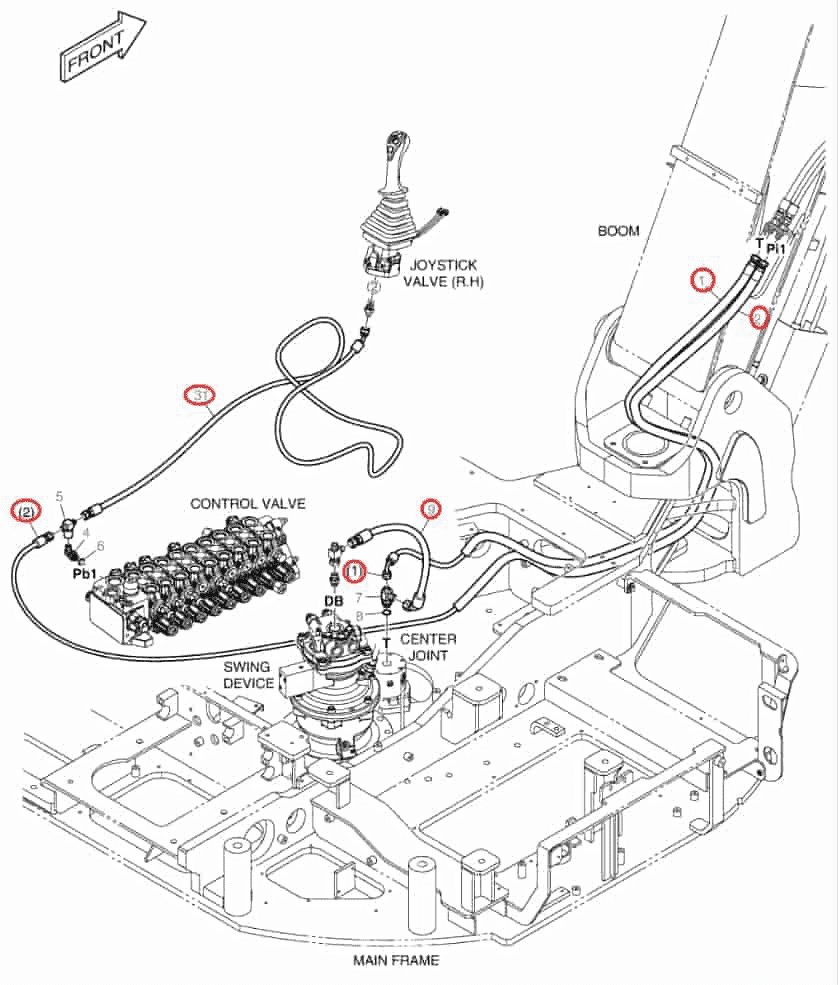

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number DS2094502 before removing the hose.

Part number: DS2094502
Diagram pipe number: 2
Installation route: 分配阀PB1口~接线板(大臂油缸锁止阀)PI1口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,640 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 3

Installation route: 分配阀T1口~液压油箱

Length: 1,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 2

Installation route: 液压油箱~接线板(小臂油缸锁止阀)T口

Length: 3,970 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 1

Installation route: 分配阀PA3口~接线板(小臂油缸锁止阀)PI1口

Length: 3,430 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 2

Installation route: 液压油箱~接线板(分节油缸锁止阀)

Length: 3,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 31

Installation route: 右手柄2口~分配阀PB1口

Length: 2,800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
