Individual hose record

4429016 Hose Repair Specifications

Excavator · Hitachi · ZX250LC-5G · Attachments – Breaker

Finished length2,250 mm

Locate this hose

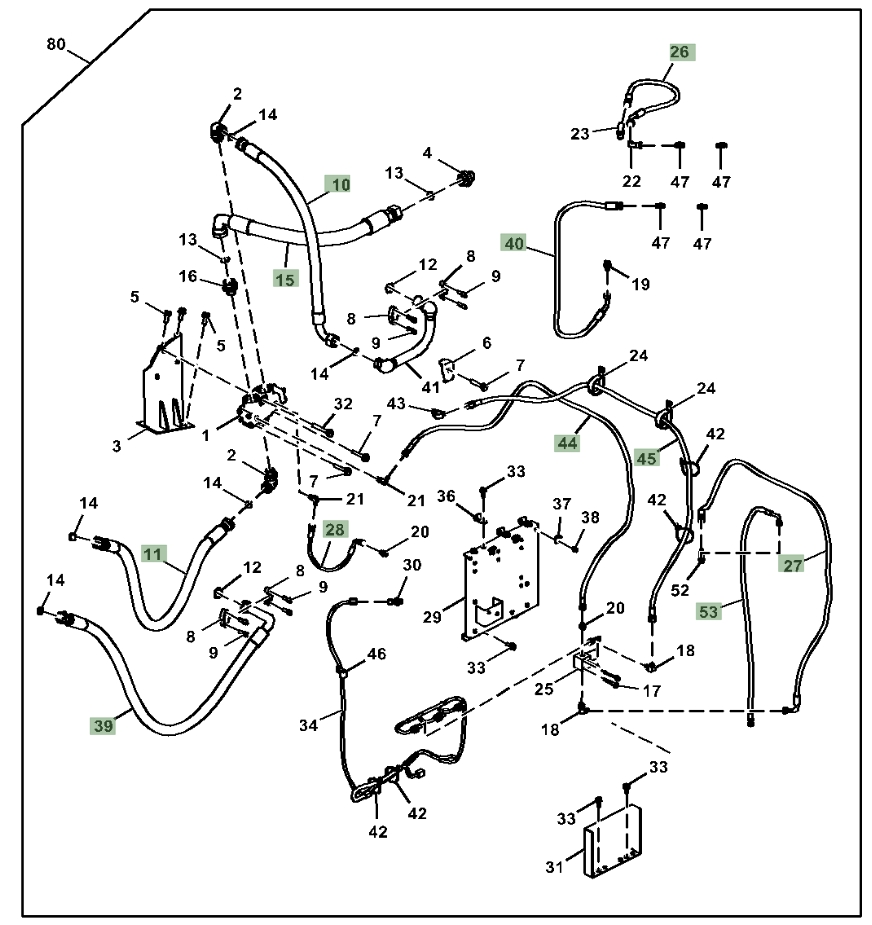

Installation diagram — Pipe No. 44

Locate Pipe No. 44 in the diagram, then confirm part number 4429016 before removing the hose.

Hitachi ZX250LC-5G installation diagram showing hydraulic hose 4429016 at Pipe No. 44 — **Hitachi ZX250LC-5G**Part 4429016 · Pipe No. 44Open full-size diagram

Repair specifications

Part number: 4429016
Diagram pipe number: 44
Installation route: 过渡阀块(破碎器)~电磁阀(破碎器)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,250 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 15

FF509627

Installation route: 过渡阀块(破碎器)~回油铁管(液压油箱)

Length: 800 mm
Specification: DN31;1SN-20;6.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

4250888

Installation route: 大臂(破碎器)~过渡阀块(破碎器)

Length: 1,200 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4650823

Installation route: 大臂(前段)~大臂(后段)

Length: 1,650 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 28

4452734

Installation route: 电磁阀~过渡阀块(破碎器)

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 44

4449378

Installation route: 过渡阀块(破碎器)~电磁阀(破碎器)

Length: 2,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 3

4648204

Installation route: 破碎器踏板~进回油阀

Length: 550 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 45°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 8

4652746

Installation route: 小臂破碎器截止阀

Length: 1,600 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 26

4453063

Installation route: 中转接头~分配阀上

Length: 630 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications
