Individual hose record
4716365 Hose Repair Specifications
Excavator · Hitachi · ZX670LC-6 · Boom Assembly
Finished length1,780 mm
Locate this hose

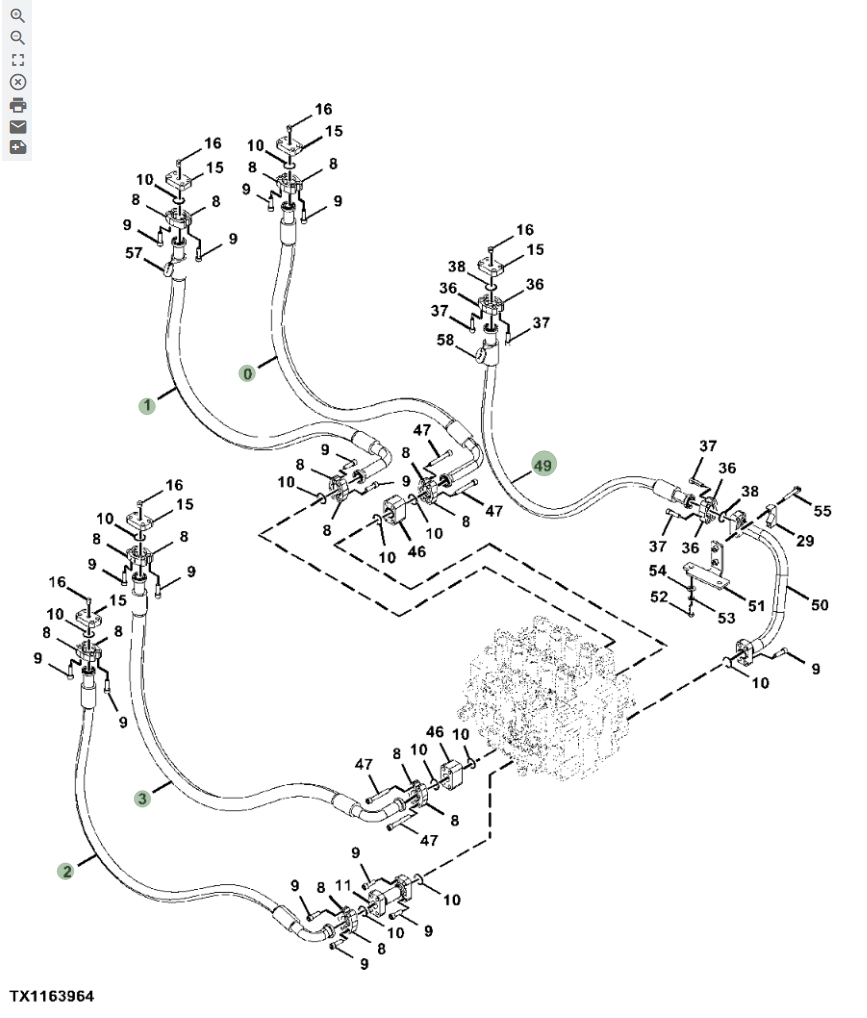

Installation diagram — Pipe No. 49
Locate Pipe No. 49 in the diagram, then confirm part number 4716365 before removing the hose.
Repair specifications
- Part number
- 4716365
- Diagram pipe number
- 49
- Installation route
- 大臂左5
- Hose specification
- DN25;4SP-16;32.5MPa
- Finished length
- 1,780 mm
- Working pressure
- 32.5 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 1
