- Length
- 2,450 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
4391698 Hose Repair Specifications
Excavator · Hitachi · EX160LC-5 · Attachments – Lock Valve
Finished length2,450 mm
Locate this hose

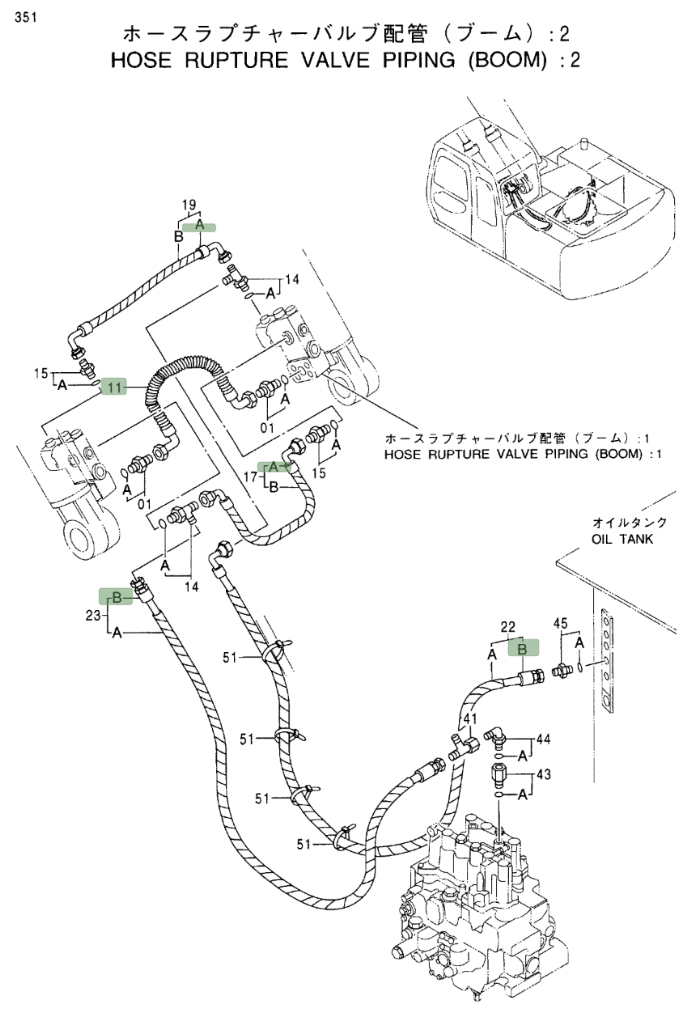

Installation diagram — Pipe No. 23B
Locate Pipe No. 23B in the diagram, then confirm part number 4391698 before removing the hose.
Repair specifications
- Part number
- 4391698
- Diagram pipe number
- 23B
- Installation route
- 左大臂油缸锁止阀~分配阀上右
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,450 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
