Individual hose record
4437436 Hose Repair Specifications
Excavator · Hitachi · ZX135US-5N · Control Valve
Finished length500 mm
Locate this hose

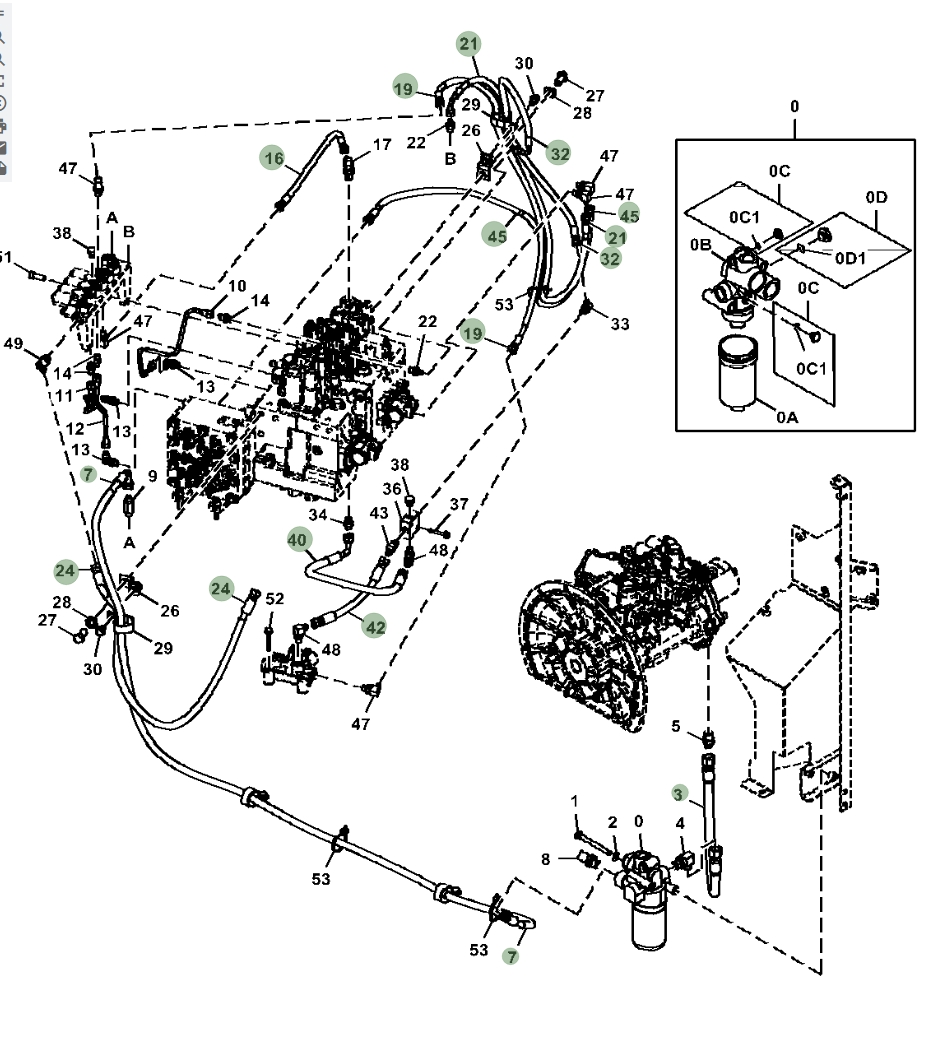

Installation diagram — Pipe No. 40
Locate Pipe No. 40 in the diagram, then confirm part number 4437436 before removing the hose.
Repair specifications
- Part number
- 4437436
- Diagram pipe number
- 40
- Installation route
- 分配阀下~流量控制阀
- Hose specification
- DN10;1SN-6;18MPa
- Finished length
- 500 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
