Individual hose record
4345675 Hose Repair Specifications
Excavator · Hitachi · EX370-5 · Boom Assembly
Finished length900 mm
Locate this hose

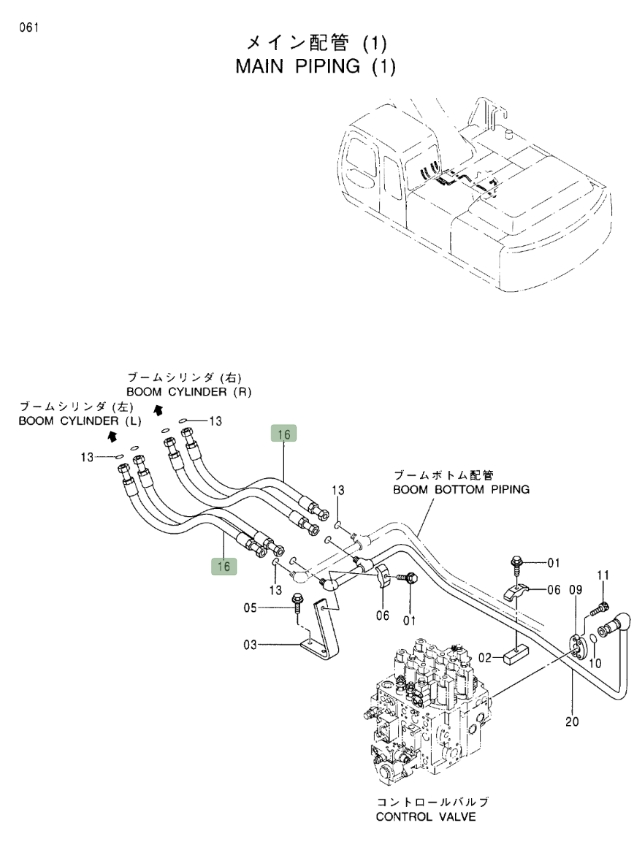

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4345675 before removing the hose.
Repair specifications
- Part number
- 4345675
- Diagram pipe number
- 16
- Installation route
- 大臂油缸
- Hose specification
- DN25;4SH-16;38.8MPa
- Finished length
- 900 mm
- Working pressure
- 38.8 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 4
