Individual hose record
DS2055576 Hose Repair Specifications
Excavator · Doosan · DX55W · Control Valve
Finished length850 mm
Locate this hose

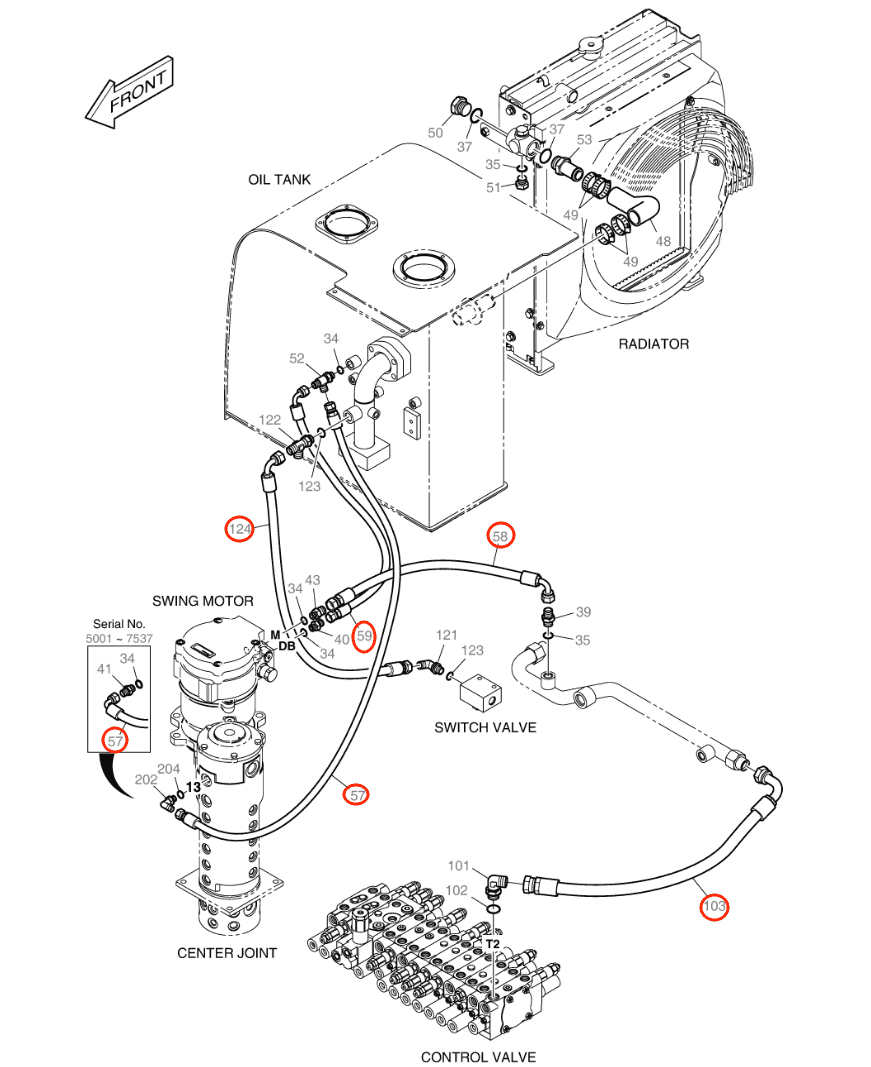

Installation diagram — Pipe No. 103
Locate Pipe No. 103 in the diagram, then confirm part number DS2055576 before removing the hose.
Repair specifications
- Part number
- DS2055576
- Diagram pipe number
- 103
- Installation route
- 回油铁管(分配阀)T2口~铁管(散热器)
- Hose specification
- -
- Finished length
- 850 mm
- Left fitting
- Female threadOriginal Chinese: 内螺纹
- Right fitting
- 90° elbow, female threadOriginal Chinese: 90°内螺纹
- Quantity
- 1
