Individual hose record
4644370 Hose Repair Specifications
Excavator · Hitachi · ZX850LC-3 · Solenoid Valve
Finished length900 mm
Locate this hose

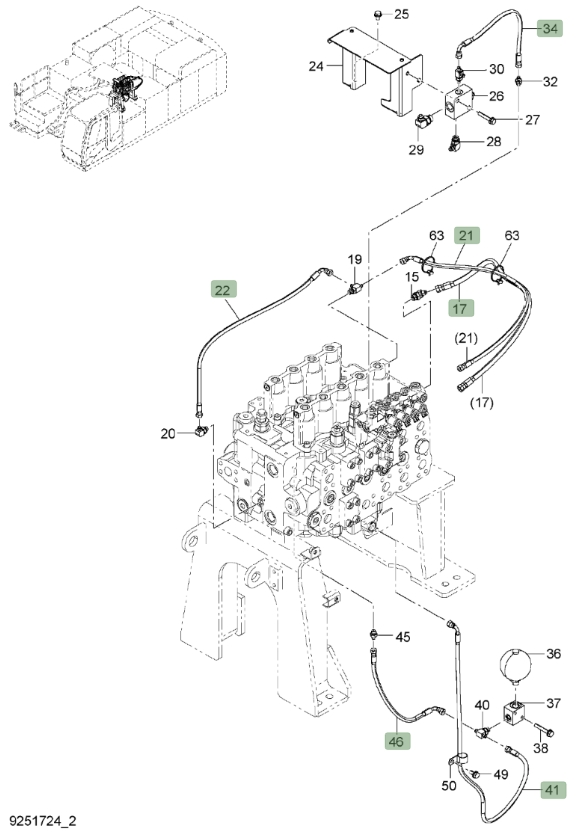

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 4644370 before removing the hose.
Repair specifications
- Part number
- 4644370
- Diagram pipe number
- 17
- Installation route
- 电磁阀~
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 900 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
