Individual hose record

KHJ2238 Hose Repair Specifications

Excavator · Case · CX145C SR · Control Valve

Finished length320 mm

Locate this hose

Installation diagram — Pipe No. 159

Locate Pipe No. 159 in the diagram, then confirm part number KHJ2238 before removing the hose.

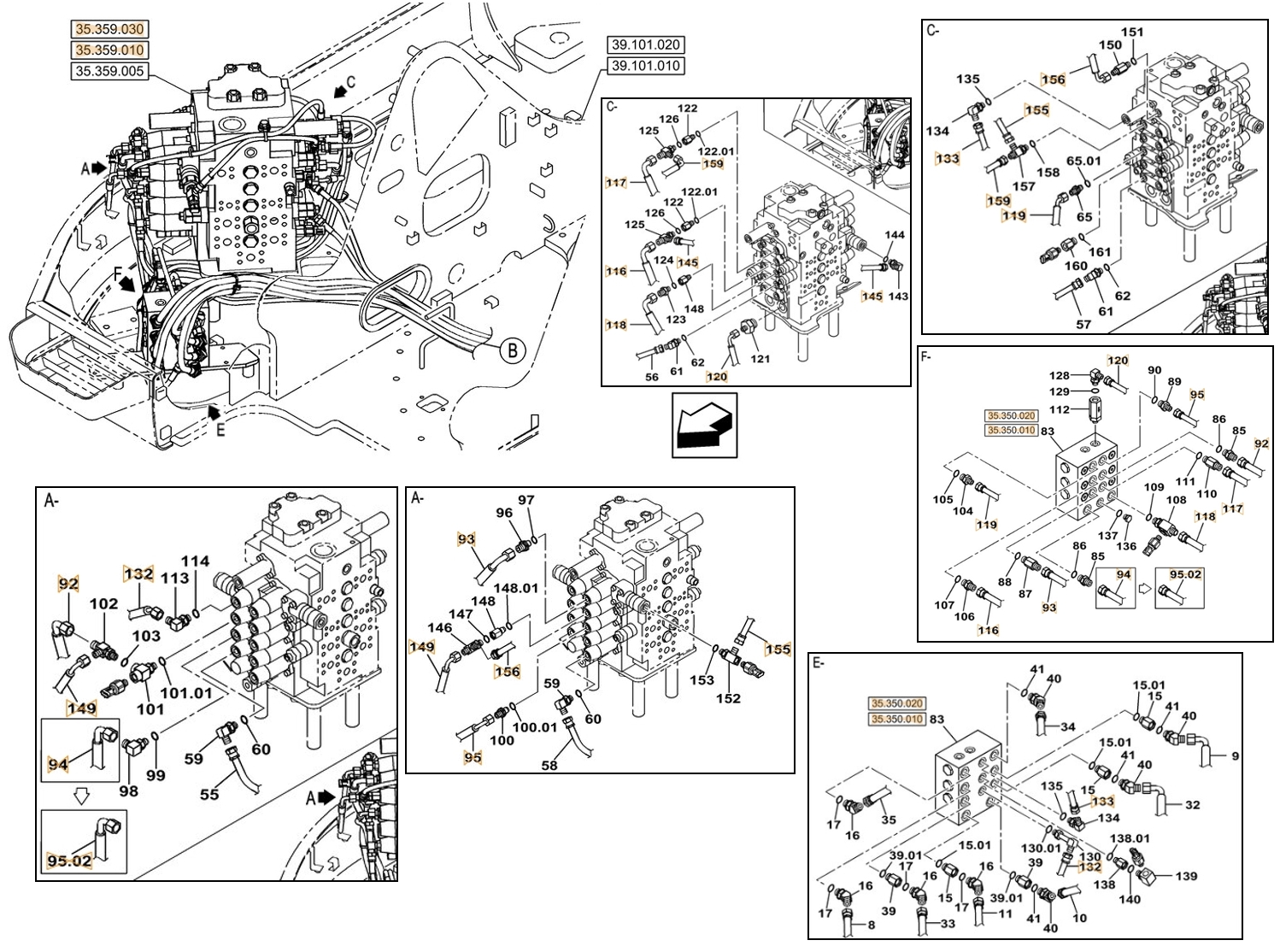

Case CX145C SR installation diagram showing hydraulic hose KHJ2238 at Pipe No. 159 — **Case CX145C SR**Part KHJ2238 · Pipe No. 159Open full-size diagram

Repair specifications

Part number: KHJ2238
Diagram pipe number: 159
Installation route: 分配阀左~分配阀后
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 320 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
