Individual hose record
4693352 Hose Repair Specifications
Excavator · Hitachi · ZX35U-5N · Control Valve
Finished length1,550 mm
Locate this hose

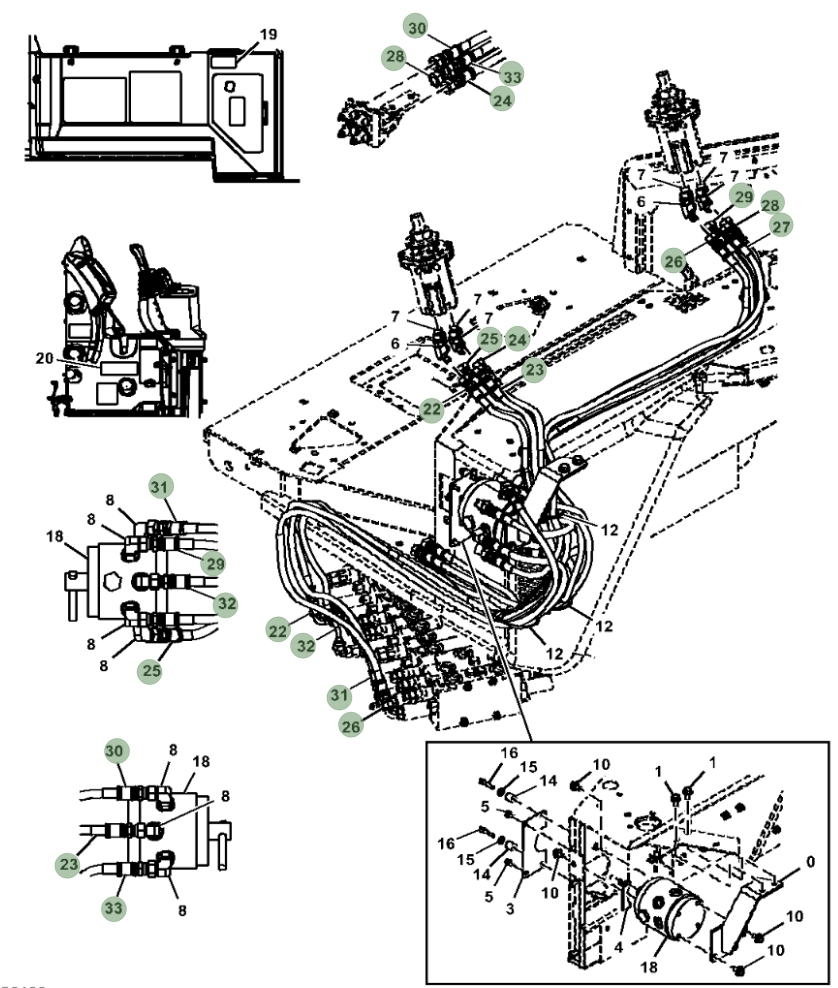

Installation diagram — Pipe No. 31
Locate Pipe No. 31 in the diagram, then confirm part number 4693352 before removing the hose.
Repair specifications
- Part number
- 4693352
- Diagram pipe number
- 31
- Installation route
- 分配阀左后~模式转换阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,550 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
