Diagram Pipe No. 8
4276438
Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Length
- 2,200 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
4227083 Hose Repair Specifications
Excavator · Hitachi · EX100-3 · Grease Lines
Finished length340 mm
Locate this hose

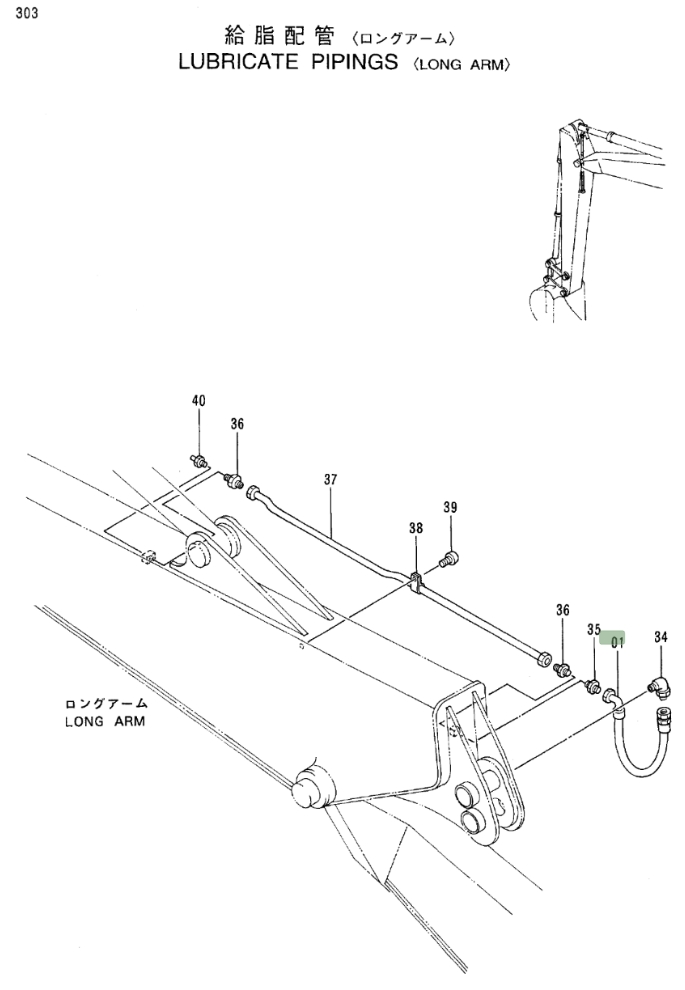

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4227083 before removing the hose.
Repair specifications
- Part number
- 4227083
- Diagram pipe number
- 1
- Installation route
- 小臂销黄油管
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 340 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 2,750 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
