Individual hose record

4642276 Hose Repair Specifications

Excavator · Hitachi · ZX380LC-6N · Attachments – Breaker

Finished length1,650 mm

Locate this hose

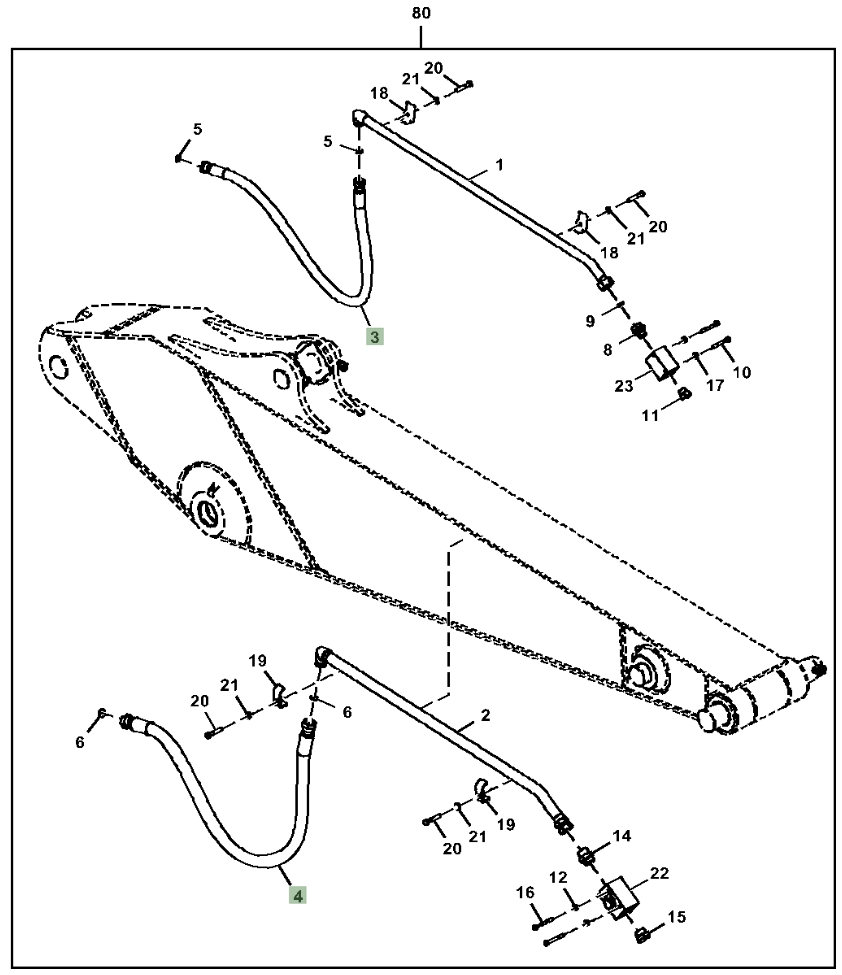

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 4642276 before removing the hose.

Hitachi ZX380LC-6N installation diagram showing hydraulic hose 4642276 at Pipe No. 4 — **Hitachi ZX380LC-6N**Part 4642276 · Pipe No. 4Open full-size diagram

Repair specifications

Part number: 4642276
Diagram pipe number: 4
Installation route: 小臂破碎器截止阀右
Hose specification: DN32;4SP-20;35Mpa
Finished length: 1,650 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 5

4650194

Installation route: 大臂(前段)~大臂(后段)

Length: 1,700 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 26

4470393

Installation route: 过渡阀块(破碎器)~电磁阀

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 19

4650840

Installation route: 大臂(前段)~大臂(后段)

Length: 1,650 mm
Specification: DN32;6SP-20;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 24

FF107416

Installation route: 电磁阀~电磁阀(破碎器)

Length: 1,750 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 35

4637310

Installation route: 过渡阀块(破碎器)~回油铁管(液压油箱)

Length: 920 mm
Specification: DN31;1SN-20;6.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 18

4650823

Installation route: 大臂(前段)~大臂(后段)

Length: 1,650 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 41

4453063

Installation route: 中转接头~分配阀上

Length: 630 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 6

4702035

Installation route: 单踏板~中转接头

Length: 3,500 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
