Individual hose record
4427152 Hose Repair Specifications
Excavator · Hitachi · ZX120 · Attachments
Finished length550 mm
Locate this hose

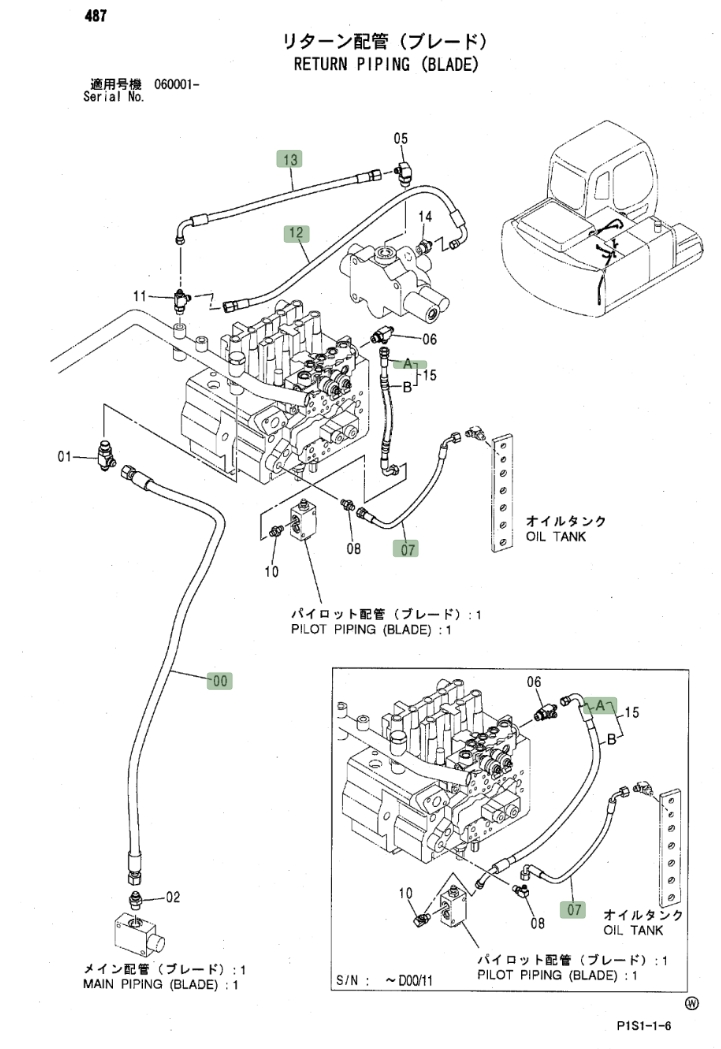

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4427152 before removing the hose.
Repair specifications
- Part number
- 4427152
- Diagram pipe number
- 13
- Installation route
- 控制阀(推土铲)~回油铁管(分配阀)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 550 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
