Individual hose record
73050200B170 Hose Repair Specifications
Excavator · Sunward · SWE750F · Control Valve
Finished length1,040 mm
Locate this hose

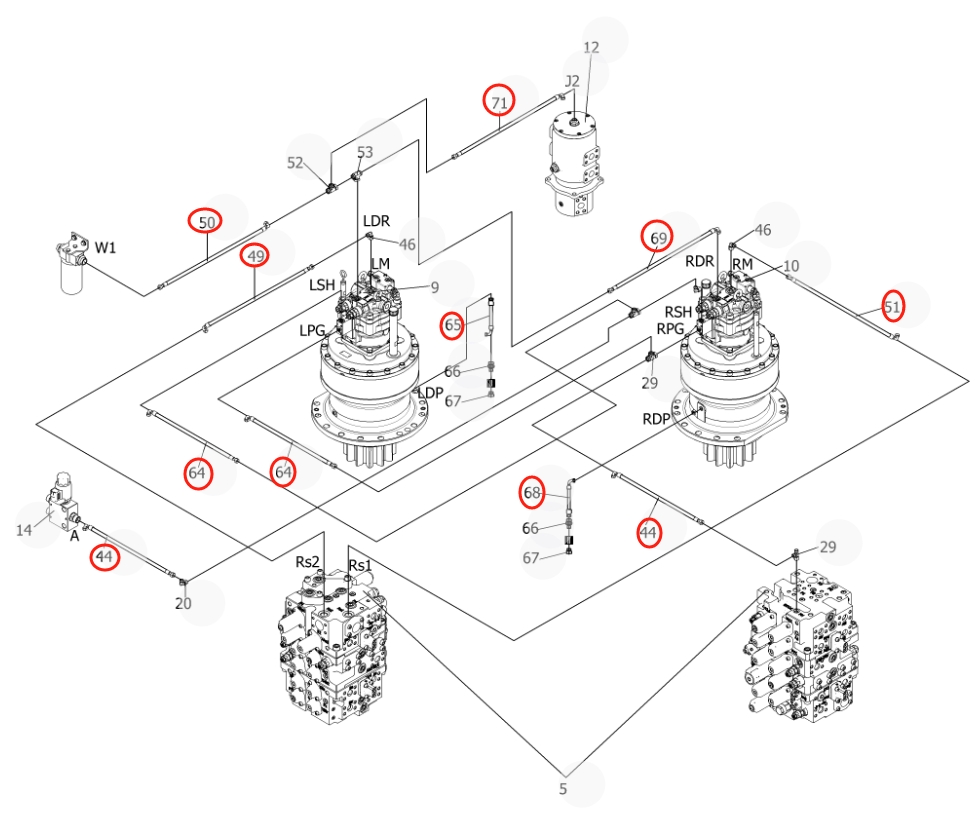

Installation diagram — Pipe No. 49
Locate Pipe No. 49 in the diagram, then confirm part number 73050200B170 before removing the hose.
Repair specifications
- Part number
- 73050200B170
- Diagram pipe number
- 49
- Installation route
- 分配阀上Rs2~回转马达(左)LDR
- Hose specification
- DN25;1SN-16;8.8MPa
- Finished length
- 1,040 mm
- Working pressure
- 8.8 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
