Individual hose record

4330804 Hose Repair Specifications

Excavator · Hitachi · ZX50U-5N · Swing Motor

Finished length1,040 mm

Locate this hose

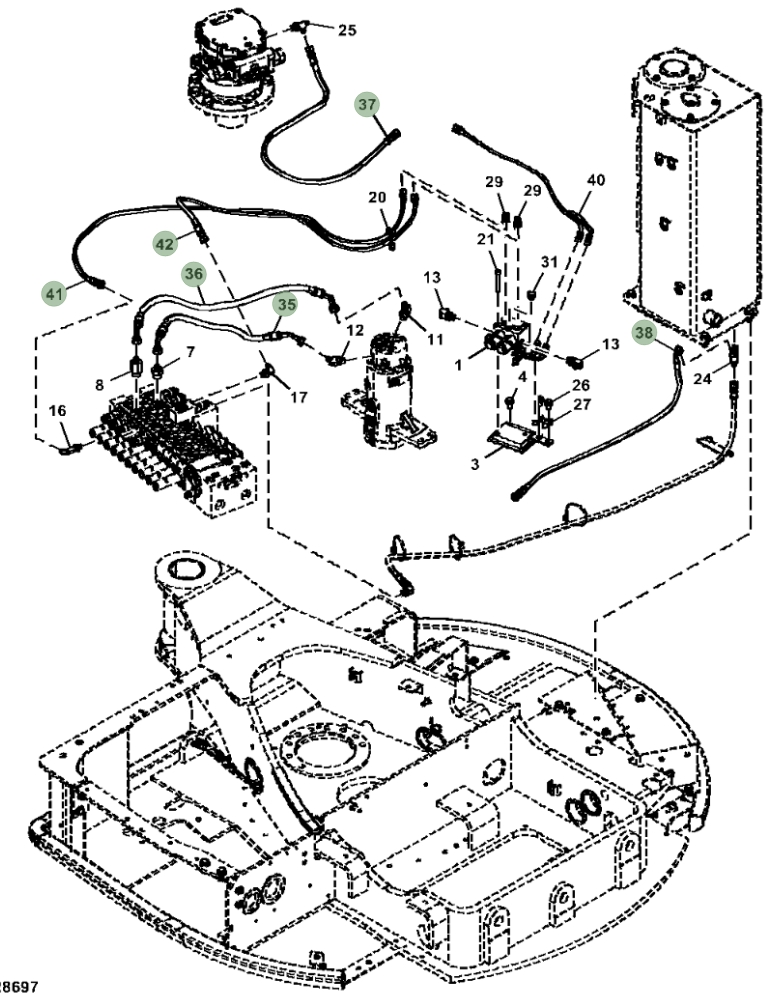

Installation diagram — Pipe No. 37

Locate Pipe No. 37 in the diagram, then confirm part number 4330804 before removing the hose.

Hitachi ZX50U-5N installation diagram showing hydraulic hose 4330804 at Pipe No. 37 — Hitachi ZX50U-5NPart 4330804 · Pipe No. 37Open full-size diagram

Repair specifications

Part number: 4330804
Diagram pipe number: 37
Installation route: 回转马达~电磁阀
Hose specification: DN6;1SN-4;7Mpa
Finished length: 1,040 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
