Individual hose record
4188905 Hose Repair Specifications
Excavator · Hitachi · EX400LC-3C · Control Valve
Finished length850 mm
Locate this hose

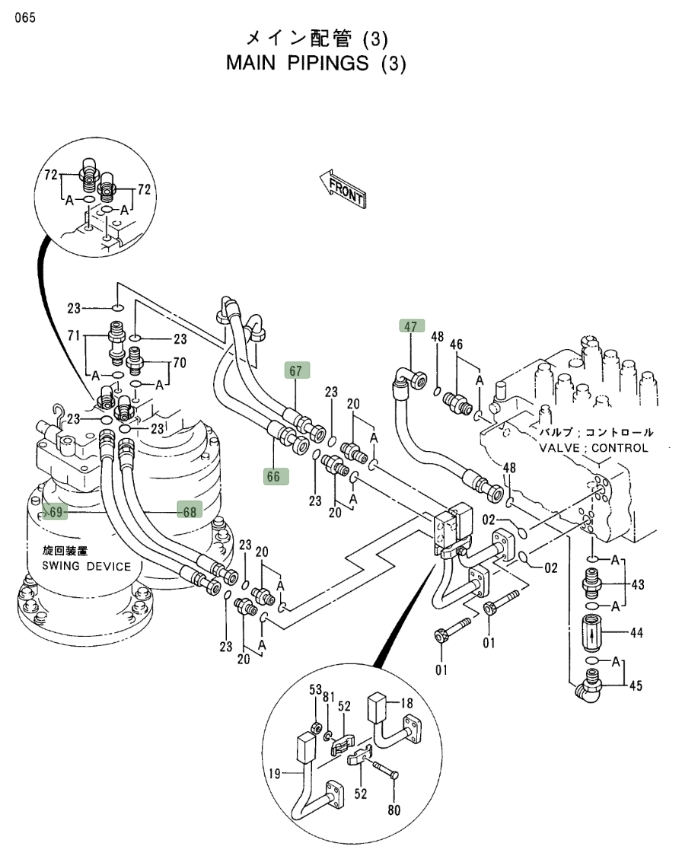

Installation diagram — Pipe No. 68
Locate Pipe No. 68 in the diagram, then confirm part number 4188905 before removing the hose.
Repair specifications
- Part number
- 4188905
- Diagram pipe number
- 68
- Installation route
- 分配阀左~回转马达(左)
- Hose specification
- DN19;4SP-12;38Mpa
- Finished length
- 850 mm
- Working pressure
- 38 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
