Individual hose record
4635248 Hose Repair Specifications
Excavator · Hitachi · ZX470LC-6 · Attachments – Breaker
Finished length500 mm
Locate this hose

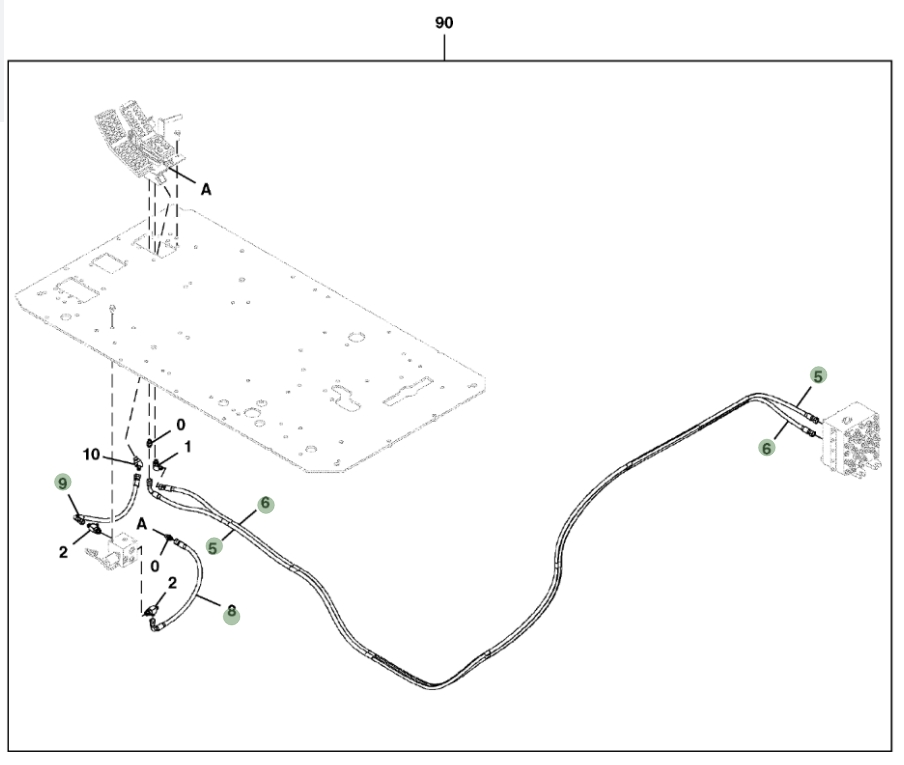

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4635248 before removing the hose.
Repair specifications
- Part number
- 4635248
- Diagram pipe number
- 9
- Installation route
- 破碎器踏板~进回油阀
- Hose specification
- DN10;1SN-6;18MPa
- Finished length
- 500 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
