Individual hose record
4260312 Hose Repair Specifications
Excavator · Hitachi · ZX135US-3 · Grease Lines
Finished length2,150 mm
Locate this hose

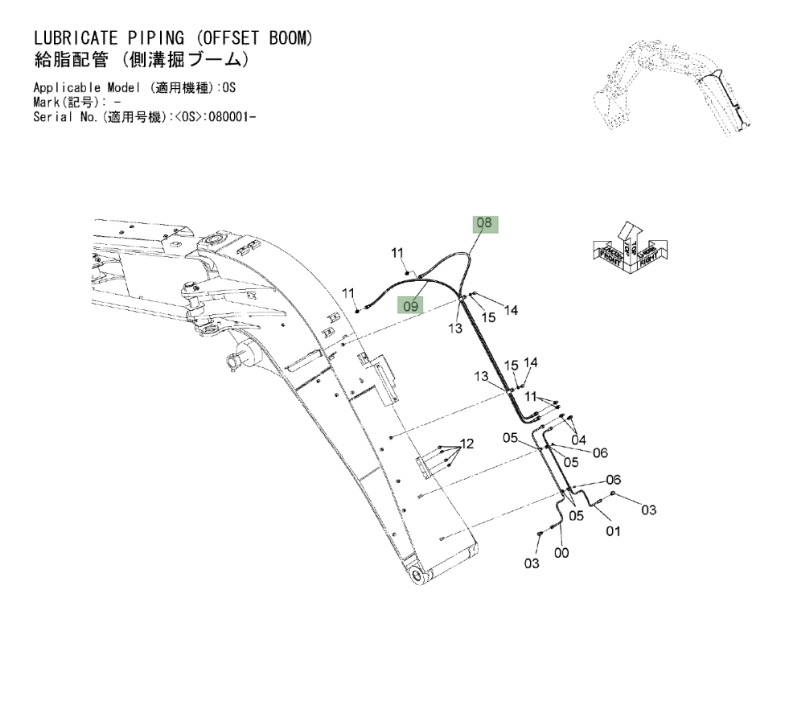

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4260312 before removing the hose.
Repair specifications
- Part number
- 4260312
- Diagram pipe number
- 8
- Installation route
- Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 2,150 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
