Individual hose record
73050200A737 Hose Repair Specifications
Excavator · Sunward · SWE80F-1A · Control Lever
Finished length1,600 mm
Locate this hose

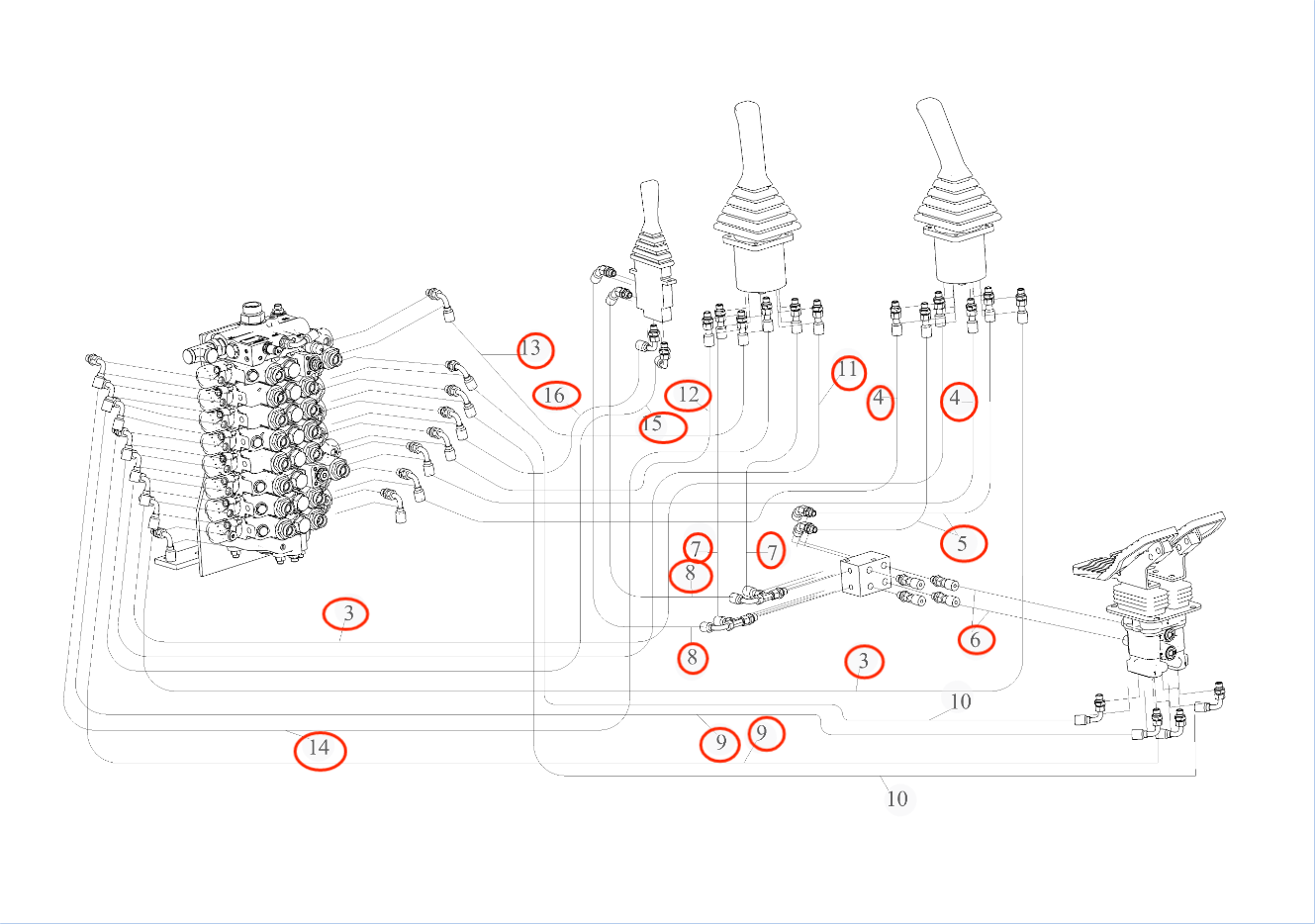

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 73050200A737 before removing the hose.
Repair specifications
- Part number
- 73050200A737
- Diagram pipe number
- 5
- Installation route
- 手柄(踏板旁)~进回油阀
- Hose specification
- DN6;2SN-04;34.5MPa
- Finished length
- 1,600 mm
- Working pressure
- 34.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 2
