Individual hose record

KHJ1264 Hose Repair Specifications

Excavator · Case · CX130C LC · Hydraulic Tank

Finished length800 mm

Locate this hose

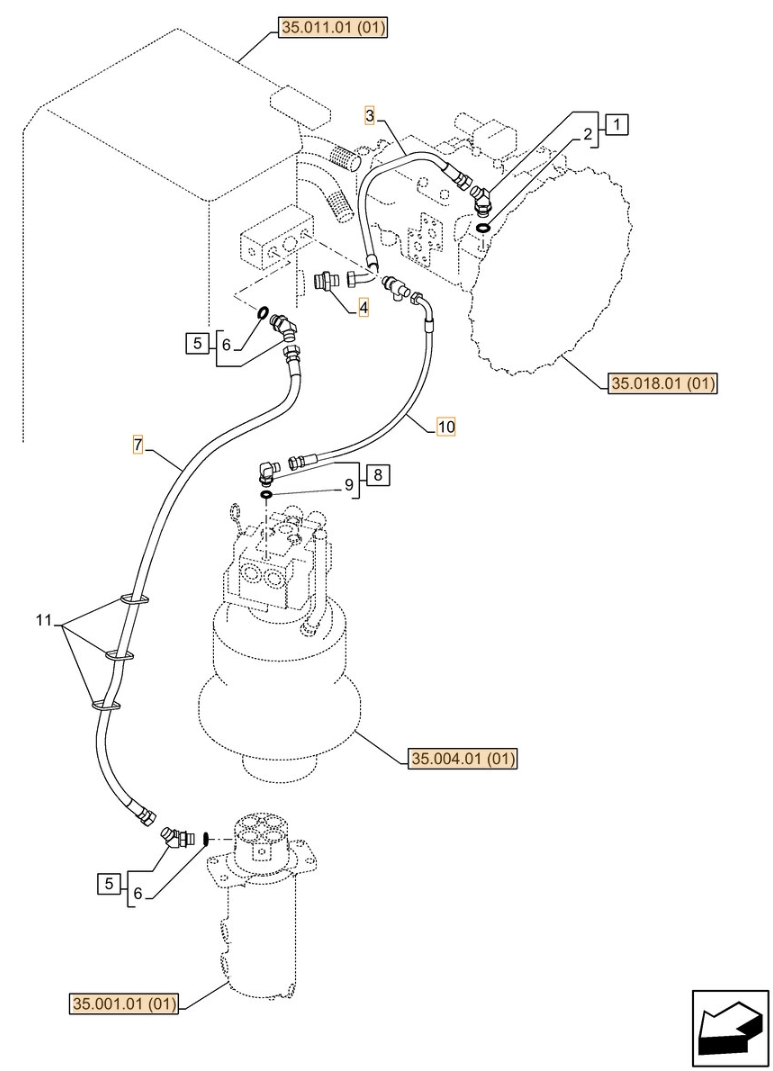

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number KHJ1264 before removing the hose.

Part number: KHJ1264
Diagram pipe number: 10
Installation route: 液压油箱~回转马达上
Hose specification: DN10;1SN-06;18MPa
Finished length: 800 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 25

Installation route: 液压油箱~缓冲阀上

Length: 2,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. A7-B61

Installation route: 液压油箱~电磁阀

Length: 1,600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 24

Installation route: 液压油箱~接头(进回油阀)

Length: 1,900 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
