Individual hose record

9154207 Hose Repair Specifications

Excavator · Hitachi · EX270LC-5 · Attachments – Breaker

Finished length1,100 mm

Locate this hose

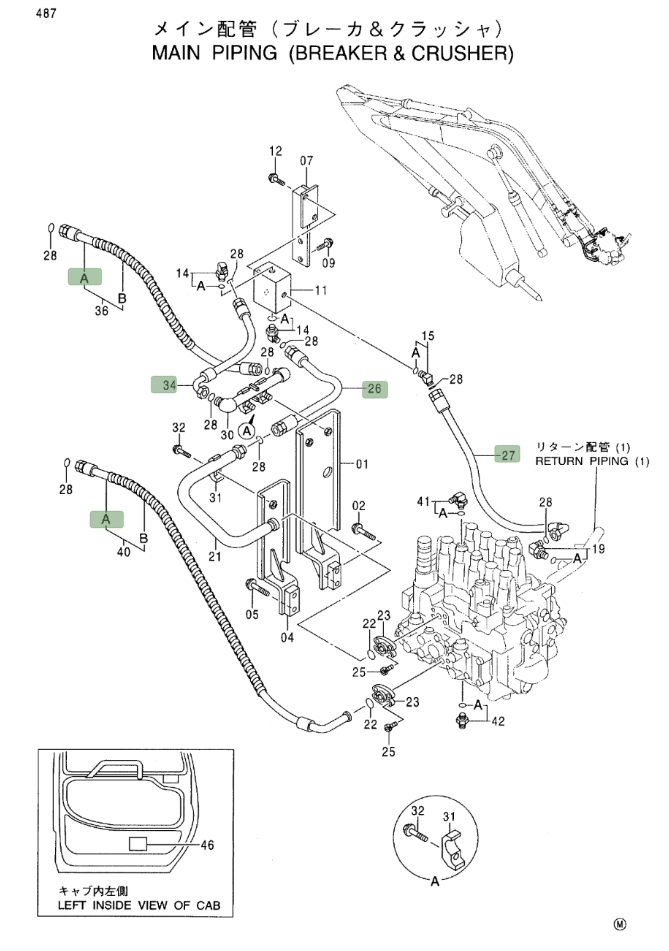

Installation diagram — Pipe No. 36

Locate Pipe No. 36 in the diagram, then confirm part number 9154207 before removing the hose.

Part number: 9154207
Diagram pipe number: 36
Installation route: 大臂(破碎器)~铁管(破碎器)
Hose specification: DN25;4SP-16;35Mpa
Finished length: 1,100 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 36A

Installation route: 大臂(破碎器)~铁管(破碎器)

Length: 1,100 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 6A

Installation route: 破碎器踏板~进回油阀

Diagram Pipe No. 19

Installation route: 破碎器踏板~过渡阀块(踏板)
