Individual hose record
4257238 Hose Repair Specifications
Excavator · Hitachi · EX160LC-5 · Swivel Joint
Finished length2,300 mm
Locate this hose

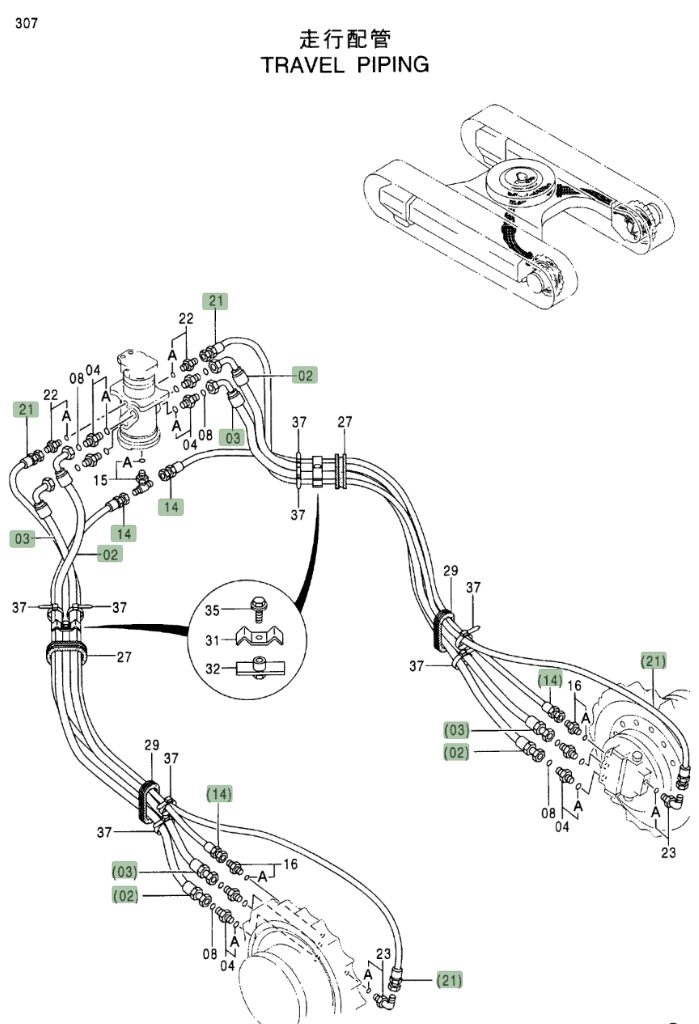

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 4257238 before removing the hose.
Repair specifications
- Part number
- 4257238
- Diagram pipe number
- 21
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 2,300 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 2
Same system
Related Hoses
Diagram Pipe No. 14
4286514
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 1,900 mm
- Specification
- DN12;4层纤维层-8;3MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
