Individual hose record

4219353 Hose Repair Specifications

Excavator · Hitachi · EX100WD · Attachments

Finished length2,800 mm

Locate this hose

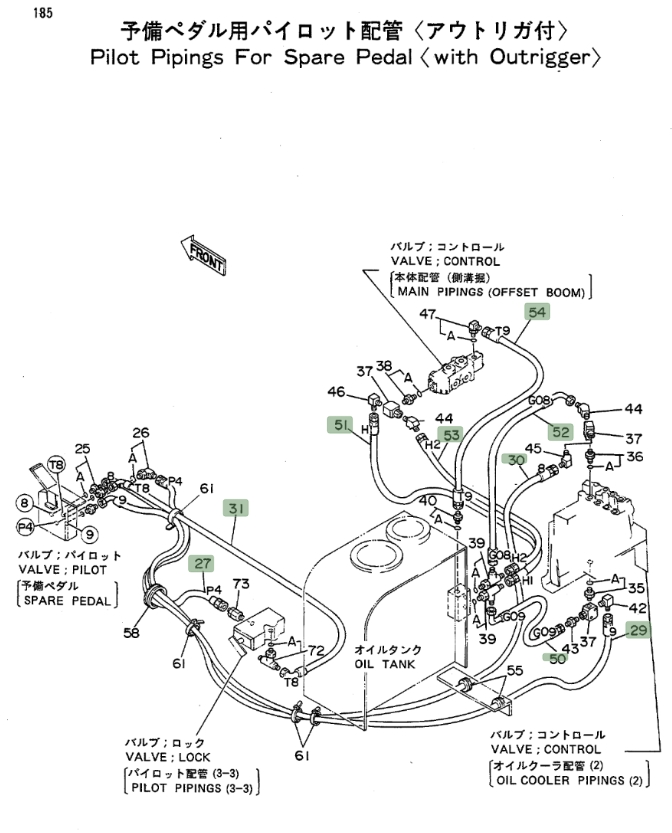

Installation diagram — Pipe No. 29

Locate Pipe No. 29 in the diagram, then confirm part number 4219353 before removing the hose.

Hitachi EX100WD installation diagram showing hydraulic hose 4219353 at Pipe No. 29 — **Hitachi EX100WD**Part 4219353 · Pipe No. 29Open full-size diagram

Repair specifications

Part number: 4219353
Diagram pipe number: 29
Installation route: 备用踏板~分配阀下
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 2,800 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 54

4219348

Installation route: 控制阀(偏置大臂)~过渡阀块(液压油箱)

Length: 1,250 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 52

4219352

Installation route: 分配阀上~过渡阀块(液压油箱)

Length: 700 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 42

4225422

Installation route: 控制阀(备用踏板)~止动阀(备用踏板)

Length: 630 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 46

4210398

Installation route: 分配阀上~右过渡阀块(隔板)

Length: 700 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 21

4217329

Installation route: 分配阀上~过渡阀块(液压油箱)

Length: 600 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 50

4219359

Installation route: 分配阀下~过渡阀块(液压油箱)

Length: 550 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 30

4219354

Installation route: 备用踏板~分配阀上

Length: 3,350 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 11

4228797

Installation route: 电磁阀(支腿架)~接线板(中转接头)

Length: 1,500 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
