Individual hose record
164115A1 Hose Repair Specifications
Excavator · Case · CX350 · Solenoid Valve
Finished length2,300 mm
Locate this hose

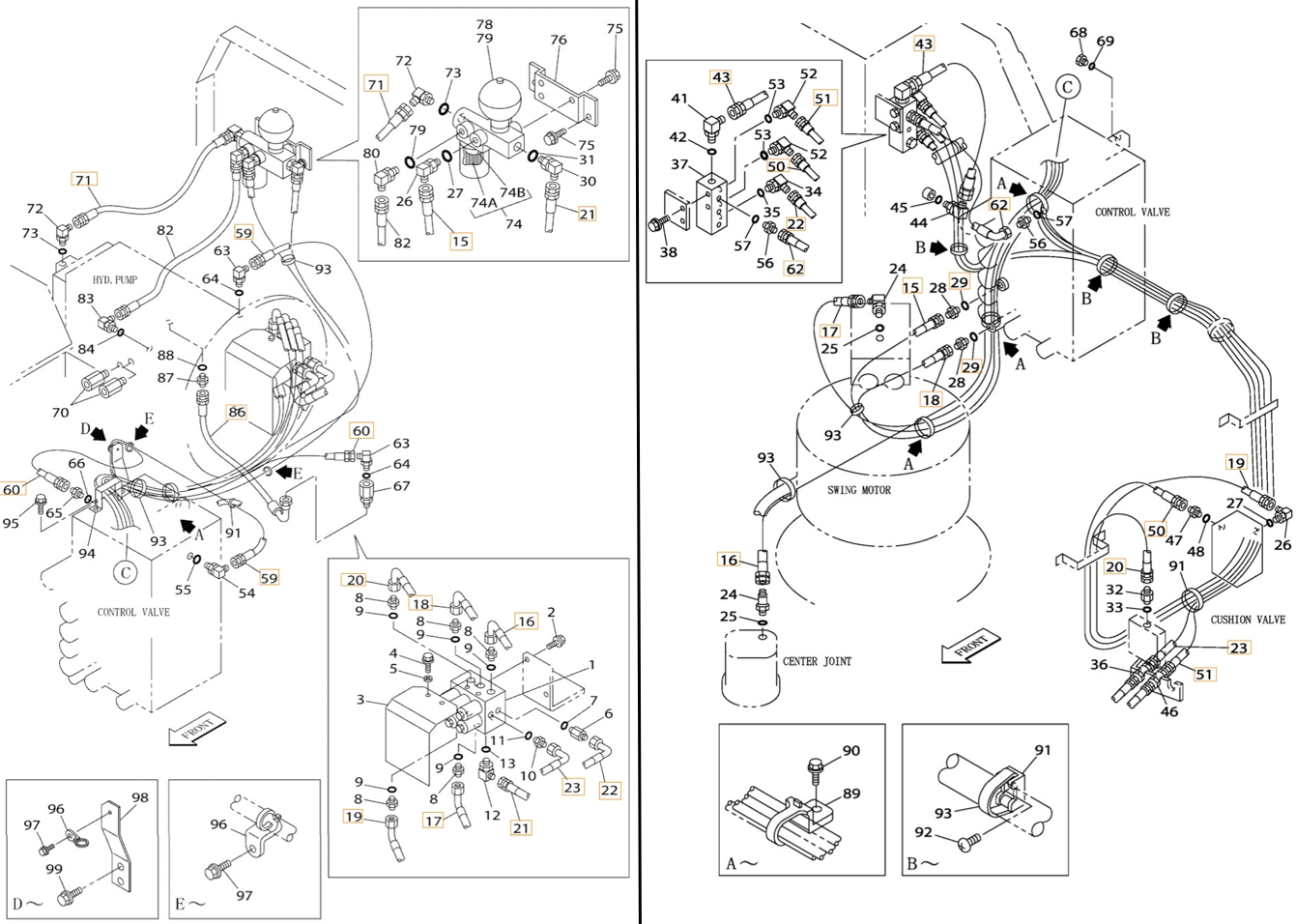

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 164115A1 before removing the hose.
Repair specifications
- Part number
- 164115A1
- Diagram pipe number
- 22
- Installation route
- 电磁阀~液压油箱过渡阀块
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,300 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
