Individual hose record
4345999 Hose Repair Specifications
Excavator · Hitachi · EX450LC-5 · Control Lever
Finished length1,750 mm
Locate this hose

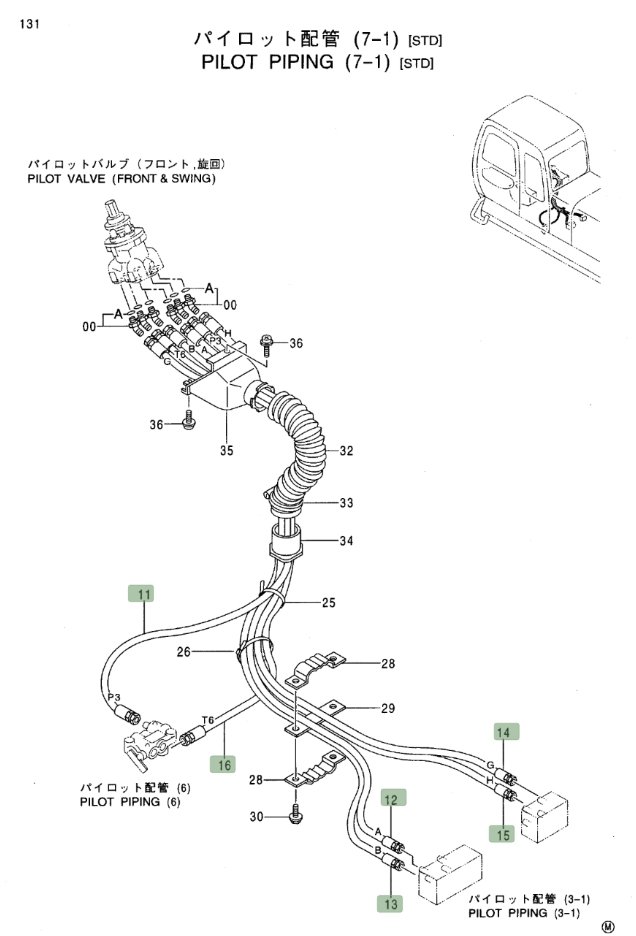

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 4345999 before removing the hose.
Repair specifications
- Part number
- 4345999
- Diagram pipe number
- 12
- Installation route
- 右手柄~中转接头(手柄)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,750 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
