Individual hose record
4236788 Hose Repair Specifications
Excavator · Hitachi · EX400LC · Hydraulic Tank
Finished length1,650 mm
Locate this hose

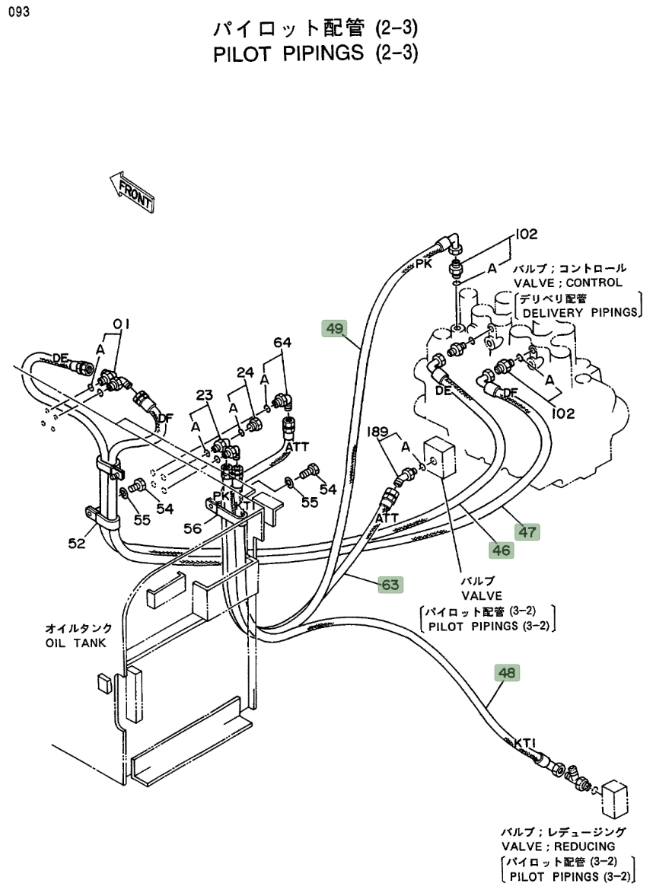

Installation diagram — Pipe No. 63
Locate Pipe No. 63 in the diagram, then confirm part number 4236788 before removing the hose.
Repair specifications
- Part number
- 4236788
- Diagram pipe number
- 63
- Installation route
- 液压油箱~过渡阀块(分配阀)
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 1,650 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
