Individual hose record
730501000574 Hose Repair Specifications
Excavator · Sunward · SWE150E · Control Lever
Finished length1,850 mm
Locate this hose

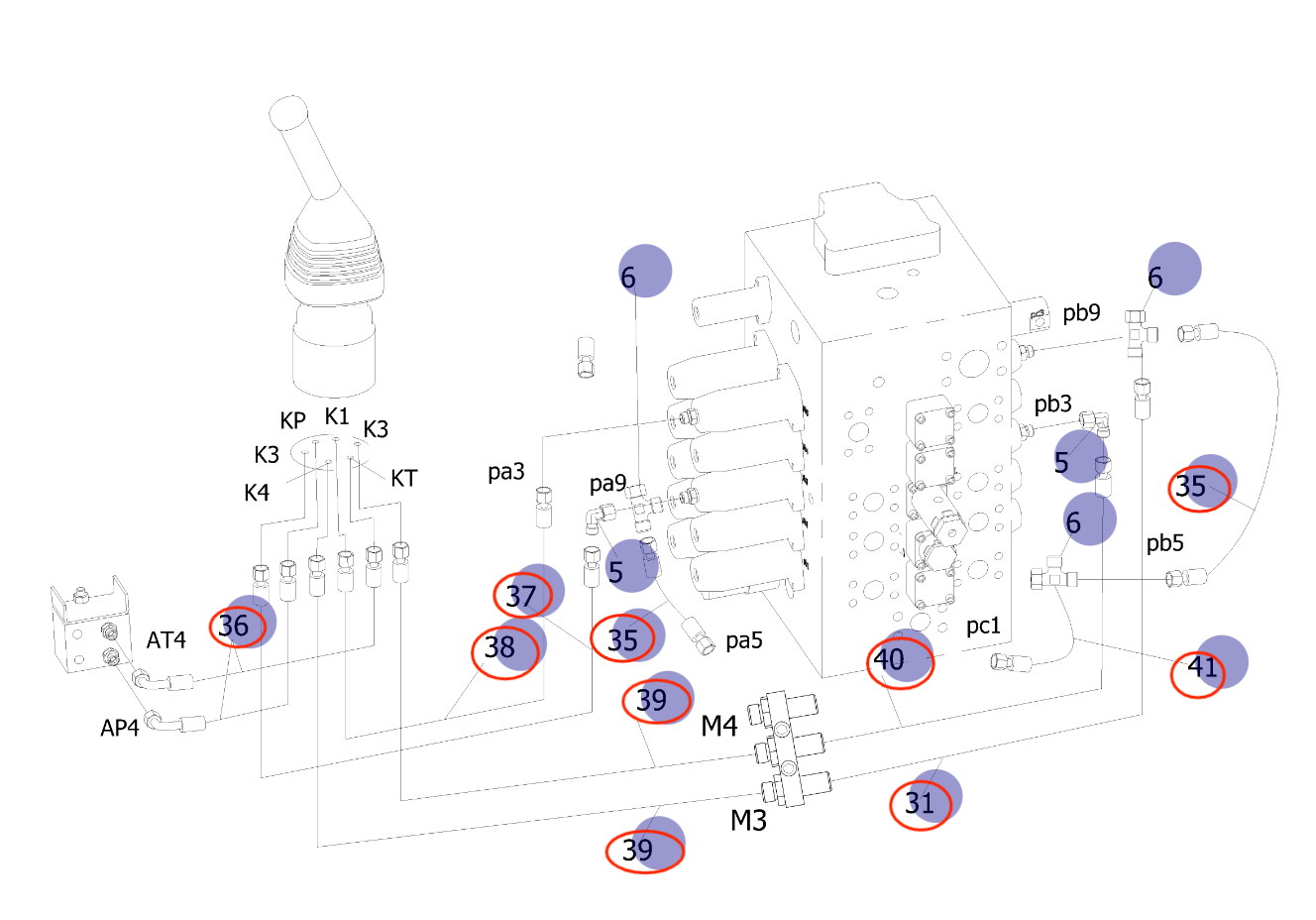

Installation diagram — Pipe No. 39
Locate Pipe No. 39 in the diagram, then confirm part number 730501000574 before removing the hose.
Repair specifications
- Part number
- 730501000574
- Diagram pipe number
- 39
- Installation route
- 手柄K4~接头M3
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,850 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
