Individual hose record

4437944 Hose Repair Specifications

Excavator · Hitachi · ZX240 · Control Valve

Finished length650 mm

Locate this hose

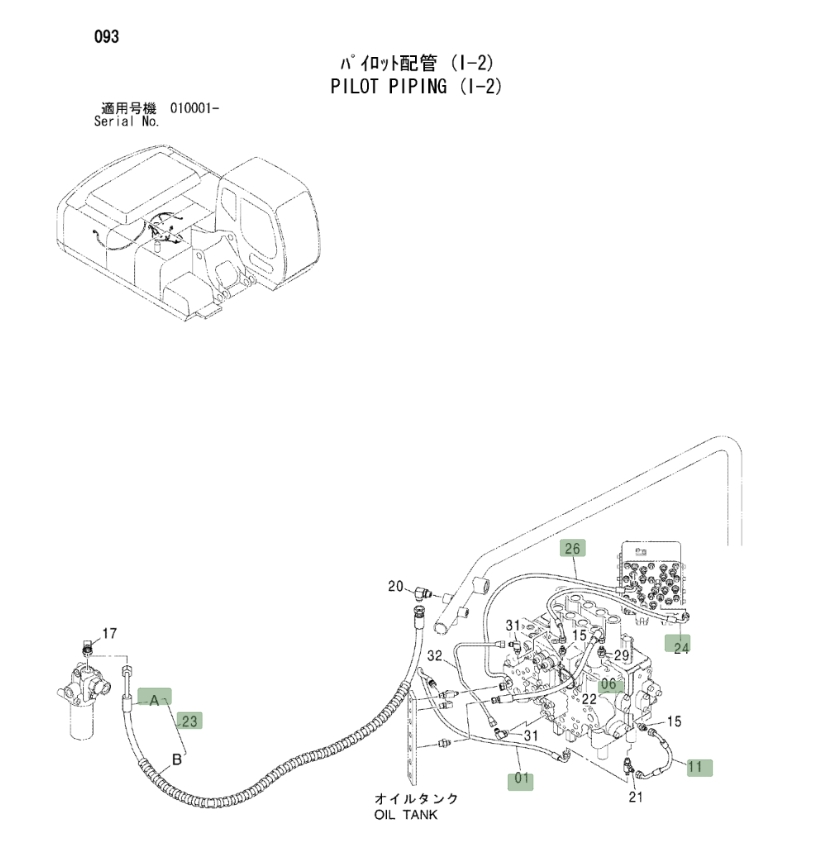

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 4437944 before removing the hose.

Hitachi ZX240 installation diagram showing hydraulic hose 4437944 at Pipe No. 6 — Hitachi ZX240Part 4437944 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 4437944
Diagram pipe number: 6
Installation route: 分配阀上~液压油箱
Hose specification: DN10;1SN-06;18MPa
Finished length: 650 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

4437943

Installation route: 分配阀下~液压油箱

Length: 1,350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 25

4444735

Installation route: 分配阀后~液压油箱

Length: 950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 10

4427351

Installation route: 分配阀左~分配阀左

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 10

DH900311

Installation route: 分配阀左~分配阀左

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
