Individual hose record
4319379 Hose Repair Specifications
Excavator · Hitachi · EX300LC-2 · Control Valve
Finished length1,400 mm
Locate this hose

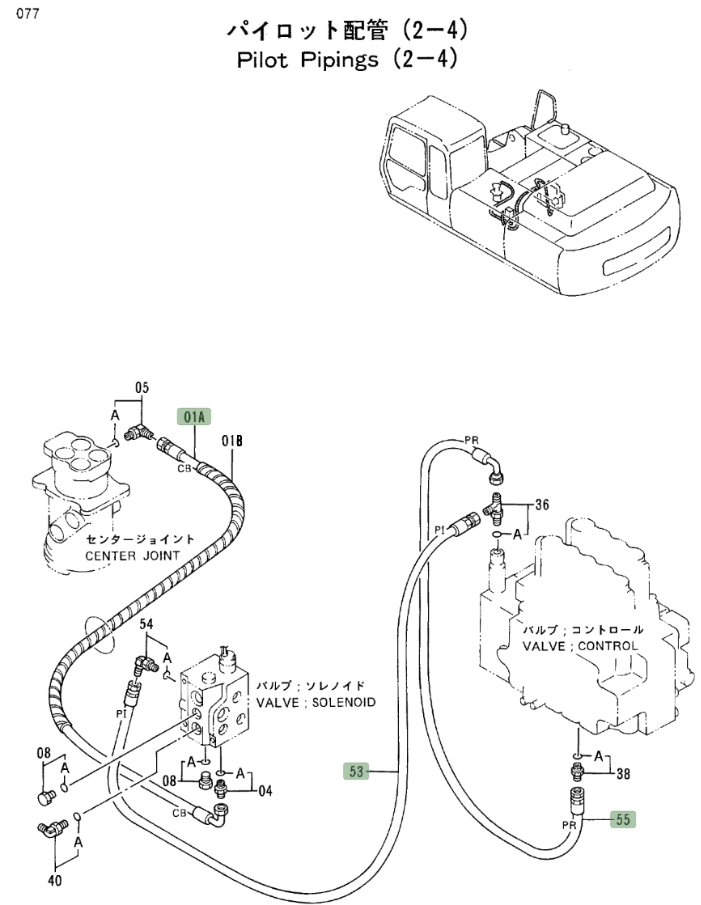

Installation diagram — Pipe No. 53
Locate Pipe No. 53 in the diagram, then confirm part number 4319379 before removing the hose.
Repair specifications
- Part number
- 4319379
- Diagram pipe number
- 53
- Installation route
- 分配阀上~电磁阀
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 1,400 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 550 mm
- Specification
- DN10;2SN-6;27.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 2,130 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 90°美制内螺纹37°内锥
- Right fitting
- 美制外螺纹37°外锥
- Length
- 620 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 2,450 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 90°美制内螺纹37°内锥
- Right fitting
- 美制外螺纹37°外锥
- Length
- 2,300 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制外螺纹37°外锥
- Length
- 520 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 1,400 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
