Individual hose record
4196297 Hose Repair Specifications
Excavator · Hitachi · EX80-5 · Hydraulic Pump
Finished length1,300 mm
Locate this hose

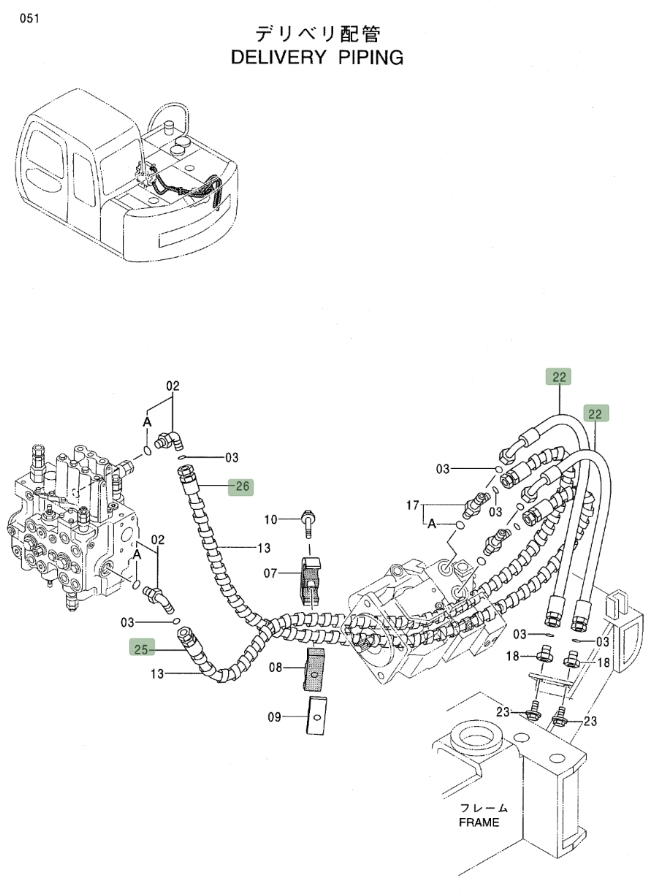

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number 4196297 before removing the hose.
Repair specifications
- Part number
- 4196297
- Diagram pipe number
- 25
- Installation route
- 液压泵~分配阀(进油)
- Hose specification
- DN19;4SP-12;38Mpa
- Finished length
- 1,300 mm
- Working pressure
- 38 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
