Individual hose record
DS2058381 Hose Repair Specifications
Excavator · Doosan · DX85R-3 · Solenoid Valve
Finished length830 mm
Locate this hose

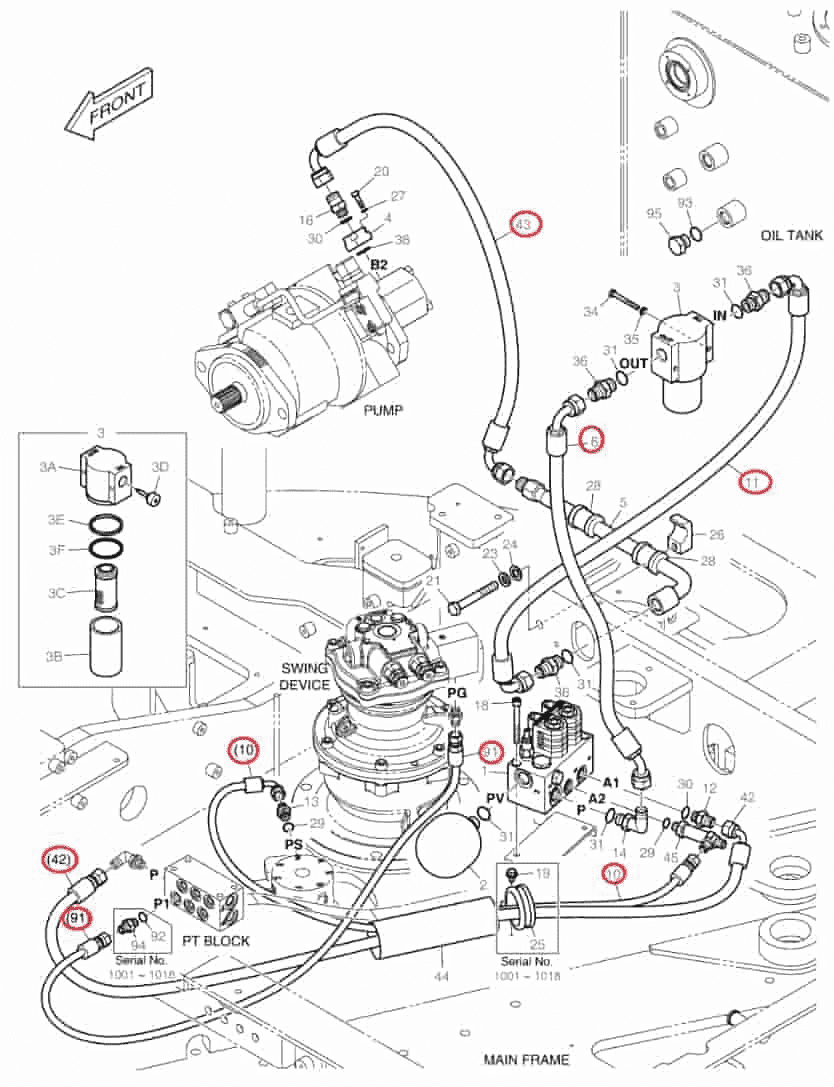

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number DS2058381 before removing the hose.
Repair specifications
- Part number
- DS2058381
- Diagram pipe number
- 6
- Installation route
- 电磁阀P口~液压油过滤器
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 830 mm
- Working pressure
- 16 MPa
- Left fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
