Individual hose record

KHJ2194 Hose Repair Specifications

Excavator · Case · CX380D LC · Attachments – Breaker

Finished length650 mm

Locate this hose

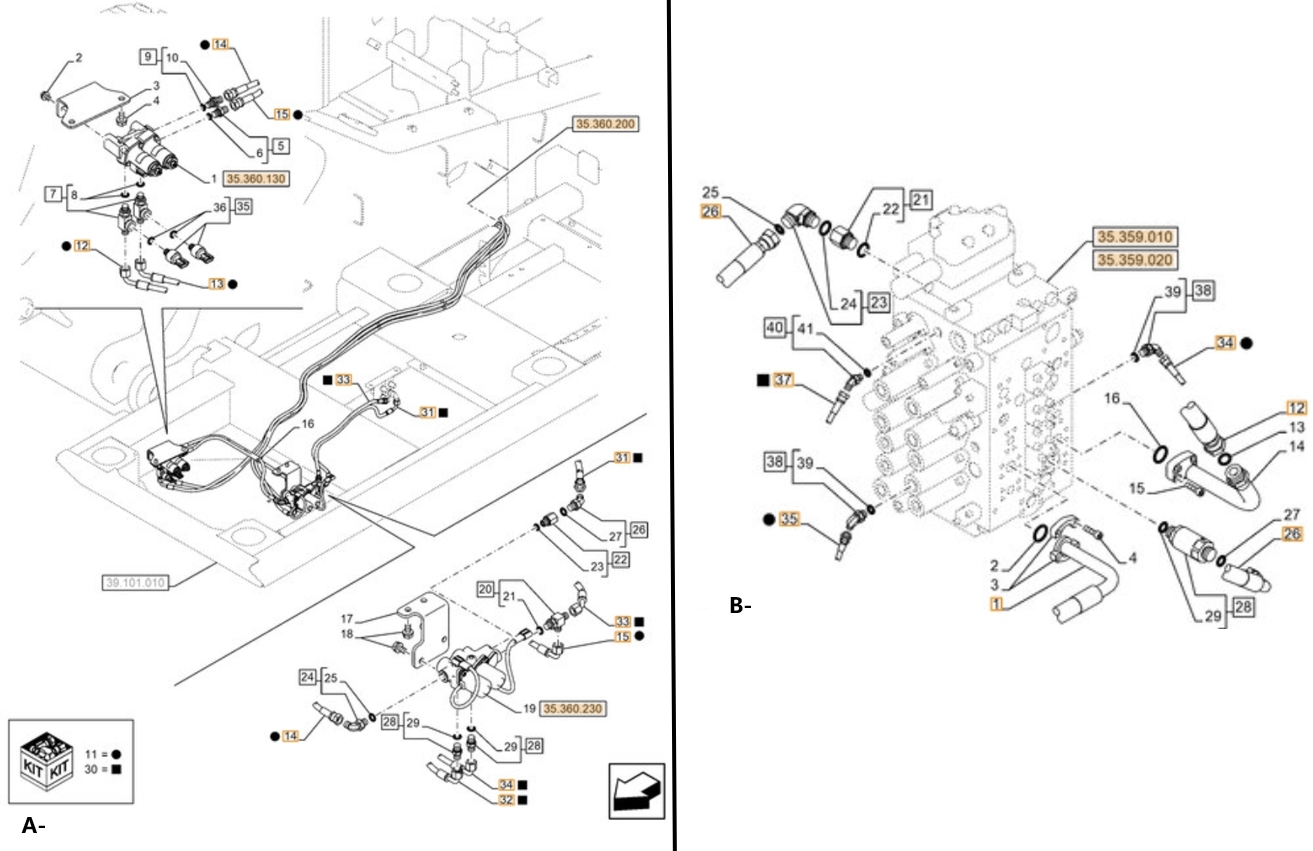

Installation diagram — Pipe No. A15

Locate Pipe No. A15 in the diagram, then confirm part number KHJ2194 before removing the hose.

Case CX380D LC installation diagram showing hydraulic hose KHJ2194 at Pipe No. A15 — **Case CX380D LC**Part KHJ2194 · Pipe No. A15Open full-size diagram

Repair specifications

Part number: KHJ2194
Diagram pipe number: A15
Installation route: 破碎器踏板~电磁阀(破碎器踏板)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 650 mm
Working pressure: 22.5 MPa
Left fitting: 90°英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. A34-B37

KHJ18020

Installation route: 分配阀前右~电磁阀(破碎器踏板)

Length: 3,550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

KHJ11500

Installation route: 破碎器踏板~分配阀后

Length: 3,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 9

KHJ2093

Installation route: 破碎器踏板~进回油阀

Length: 1,150 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 1

KSJ2909

Installation route: 液压泵右~吸油铁管

Length: 780 mm
Specification: DN25;2SN-16;16.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. A33

KHJ14650

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 41

KHJ2088

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 40

KHJ2089

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. A13-B35

KHJ25060

Installation route: 破碎器踏板~分配阀前

Length: 3,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
