Diagram Pipe No. 4
4252852
Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Length
- 3,050 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
Individual hose record
4252853 Hose Repair Specifications
Excavator · Hitachi · EX230LC-5 · Grease Lines
Finished length2,960 mm
Locate this hose

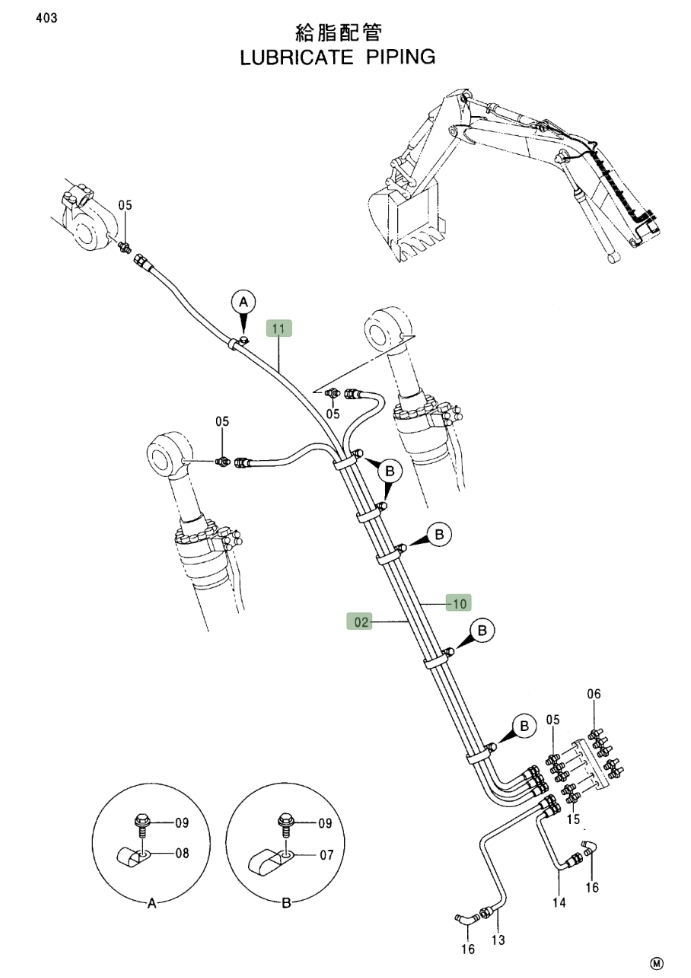

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4252853 before removing the hose.
Repair specifications
- Part number
- 4252853
- Diagram pipe number
- 2
- Installation route
- Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Hose specification
- DN6;2层纤维-04;14MPa
- Finished length
- 2,960 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 3,600 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
Diagram Pipe No. 2
4329595
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
- Length
- 2,800 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Diagram Pipe No. 10
4260316
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
- Length
- 2,920 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Diagram Pipe No. 2
4252853
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
- Length
- 2,960 mm
- Specification
- DN6;2层纤维-04;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
