Individual hose record
KHJ2089 Hose Repair Specifications
Excavator · Case · CX750D RTC · Attachments – Breaker
Finished length900 mm
Locate this hose

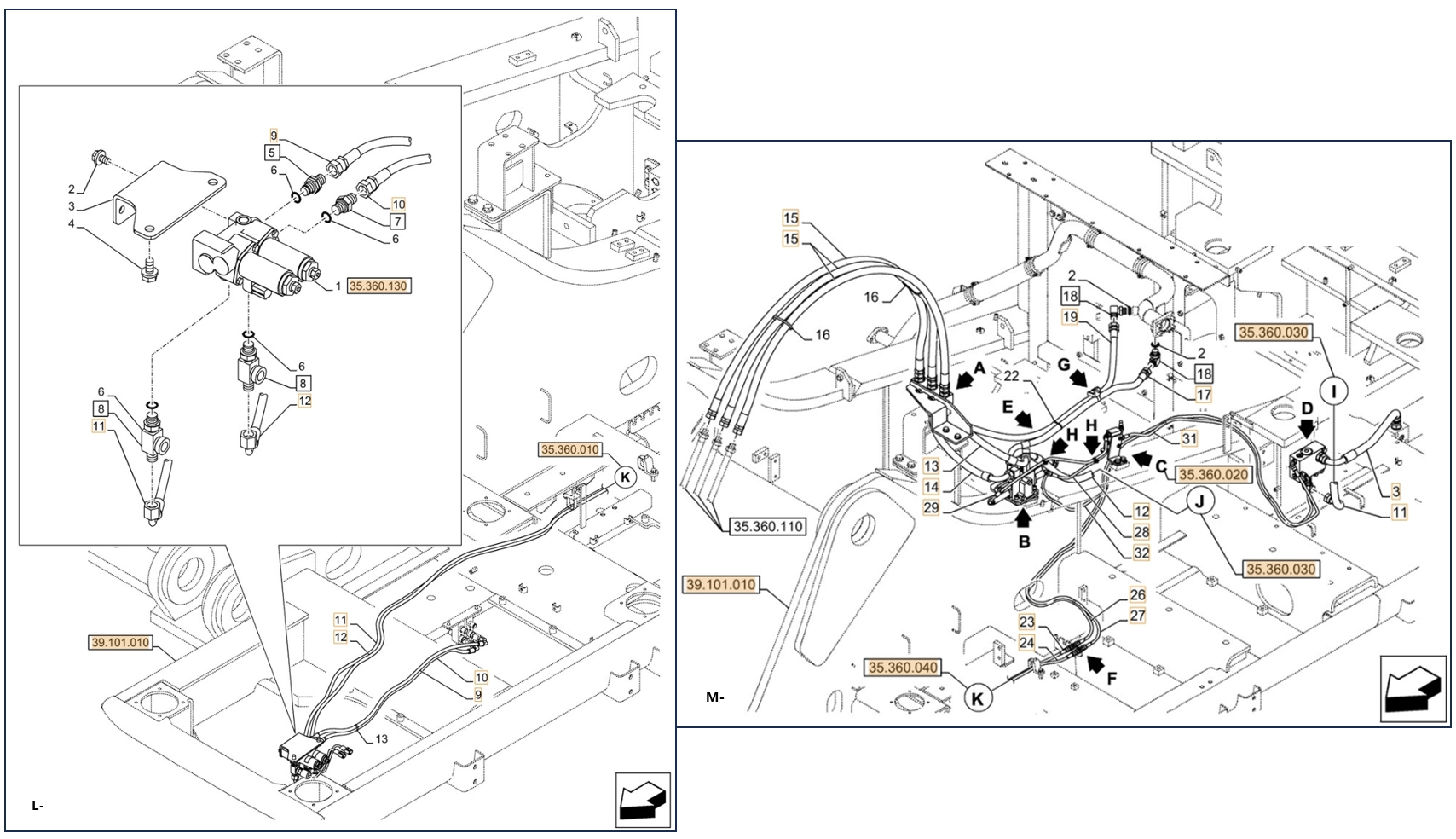

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number KHJ2089 before removing the hose.
Repair specifications
- Part number
- KHJ2089
- Diagram pipe number
- 9
- Installation route
- 破碎器踏板~进回油阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 900 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 英制内螺纹60°内锥
- Right fitting
- 英制内螺纹60°内锥
- Quantity
- 1
