Individual hose record
4651807 Hose Repair Specifications
Excavator · Hitachi · ZX470LC-5B · Swivel Joint
Finished length1,650 mm
Locate this hose

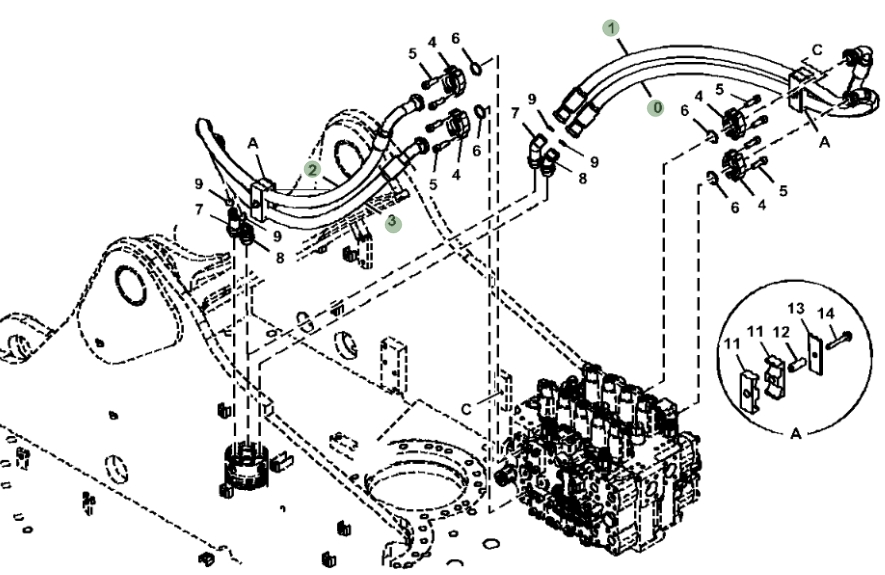

Installation diagram — Pipe No. 0
Locate Pipe No. 0 in the diagram, then confirm part number 4651807 before removing the hose.
Repair specifications
- Part number
- 4651807
- Diagram pipe number
- 0
- Installation route
- 回转接头上~分配阀右下
- Hose specification
- DN25;4SH-16;38.8MPa
- Finished length
- 1,650 mm
- Working pressure
- 38.8 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
- Quantity
- 1
