Individual hose record
4359344 Hose Repair Specifications
Excavator · Hitachi · ZX17U-5N · Boom Assembly
Finished length450 mm
Locate this hose

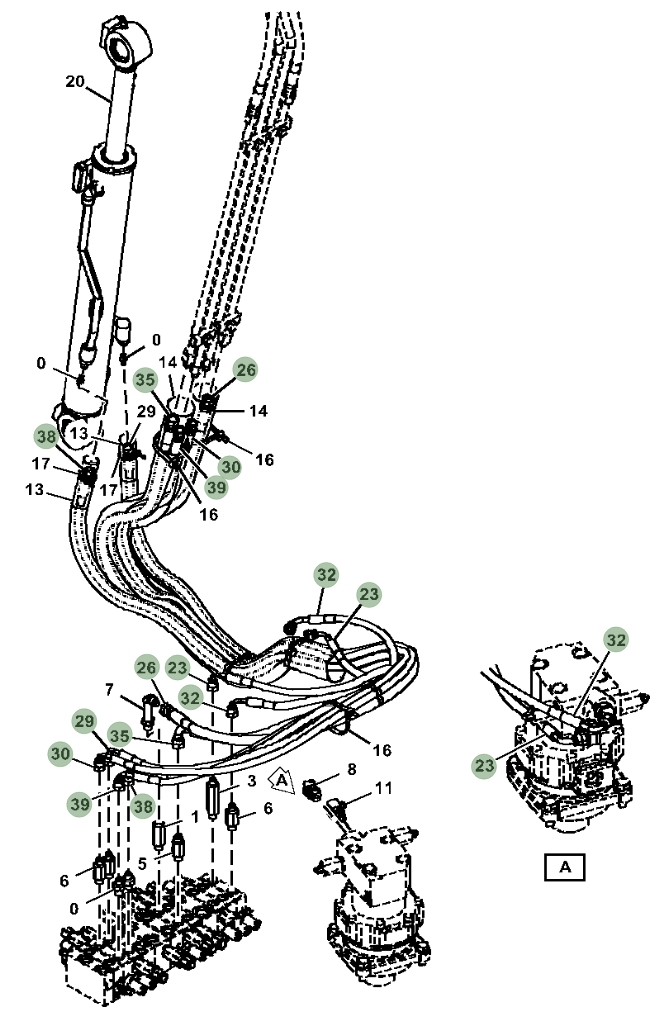

Installation diagram — Pipe No. 30
Locate Pipe No. 30 in the diagram, then confirm part number 4359344 before removing the hose.
Repair specifications
- Part number
- 4359344
- Diagram pipe number
- 30
- Installation route
- 大臂左3
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 450 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
