Individual hose record
4669601 Hose Repair Specifications
Excavator · Hitachi · ZX135US-6N · Attachments
Finished length500 mm
Locate this hose

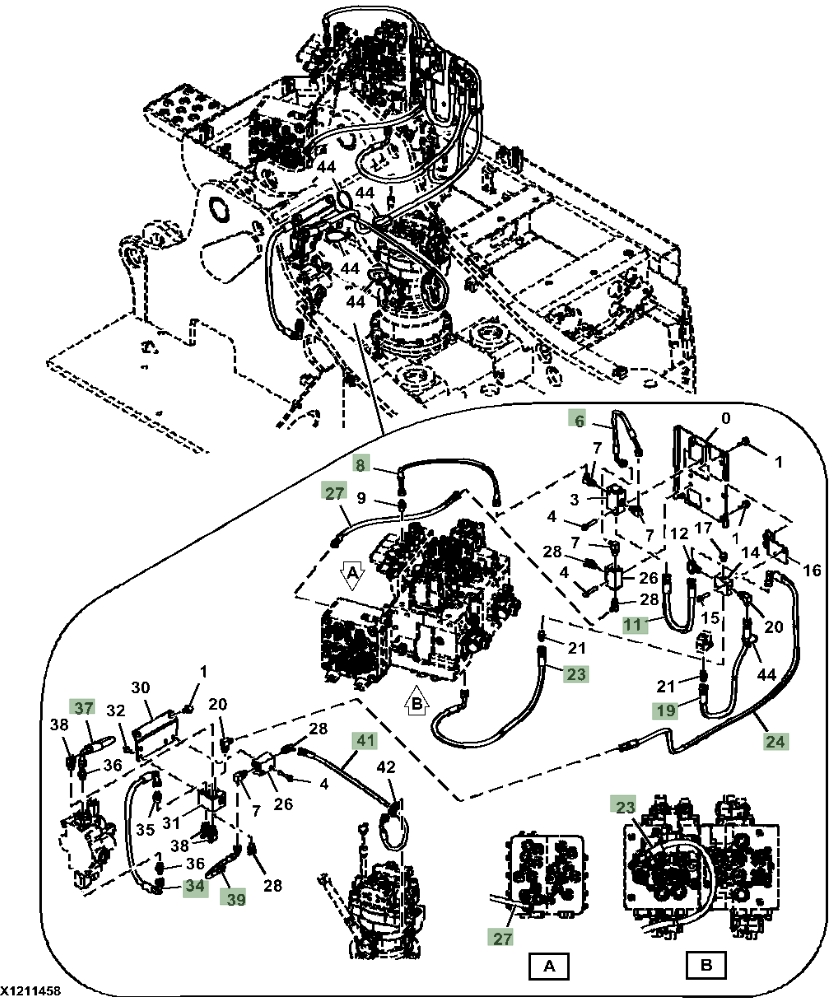

Installation diagram — Pipe No. 27
Locate Pipe No. 27 in the diagram, then confirm part number 4669601 before removing the hose.
Repair specifications
- Part number
- 4669601
- Diagram pipe number
- 27
- Installation route
- 中转接头~流量控制阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 500 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
