Individual hose record
4634368 Hose Repair Specifications
Excavator · Hitachi · ZX650LC-3 · Control Lever
Finished length1,150 mm
Locate this hose

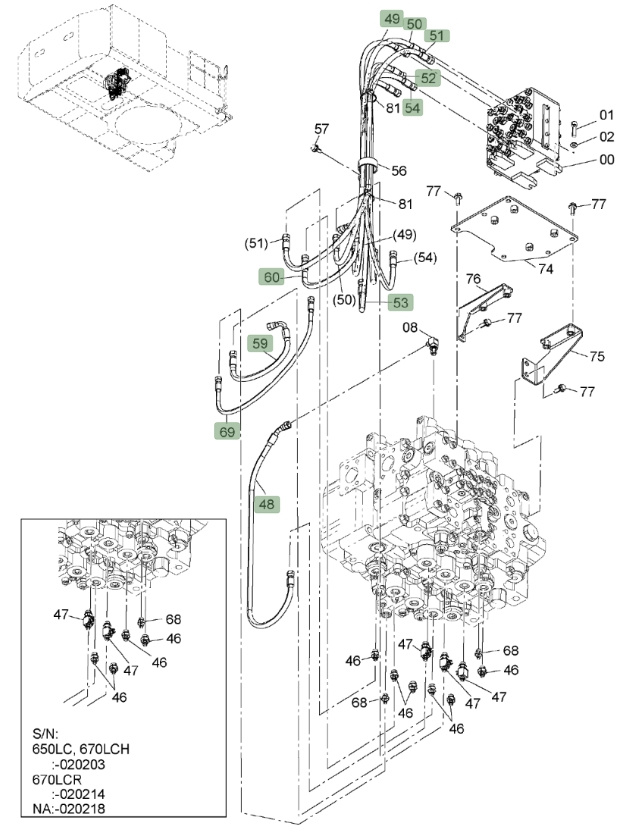

Installation diagram — Pipe No. 50
Locate Pipe No. 50 in the diagram, then confirm part number 4634368 before removing the hose.
Repair specifications
- Part number
- 4634368
- Diagram pipe number
- 50
- Installation route
- 中转接头~分配阀下
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,150 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
