Individual hose record

161661A1 Hose Repair Specifications

Excavator · Case · CX130 · Solenoid Valve

Finished length1,850 mm

Locate this hose

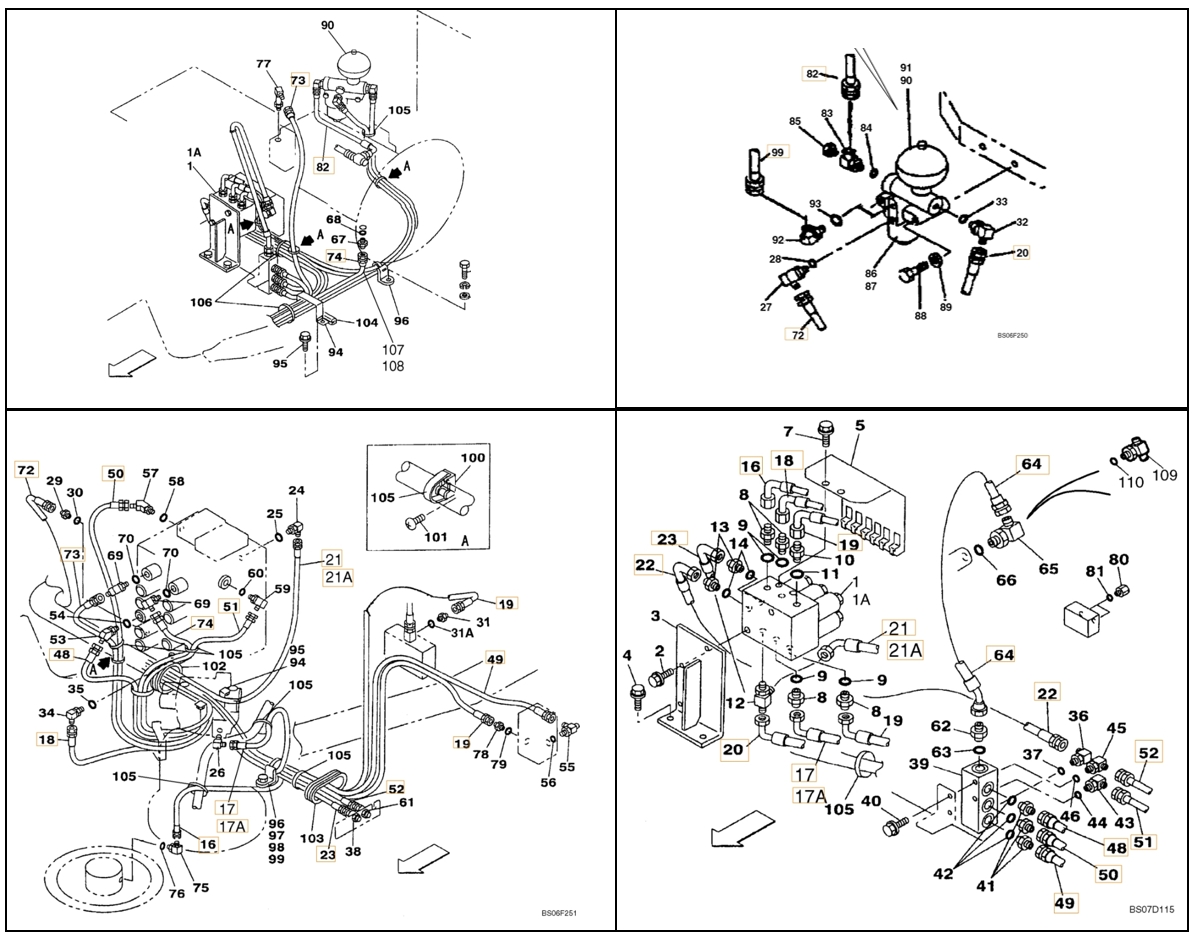

Installation diagram — Pipe No. 23

Locate Pipe No. 23 in the diagram, then confirm part number 161661A1 before removing the hose.

Part number: 161661A1
Diagram pipe number: 23
Installation route: 电磁阀~接头(进回油阀)
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,850 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 19

Installation route: 电磁阀~缓冲阀

Length: 2,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 17

Installation route: 电磁阀~缓冲阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 86

Installation route: 电磁阀左1~进回油阀

Length: 1,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
