Individual hose record
4656046 Hose Repair Specifications
Excavator · Hitachi · ZX160LC-6N · Control Lever
Finished length800 mm
Locate this hose

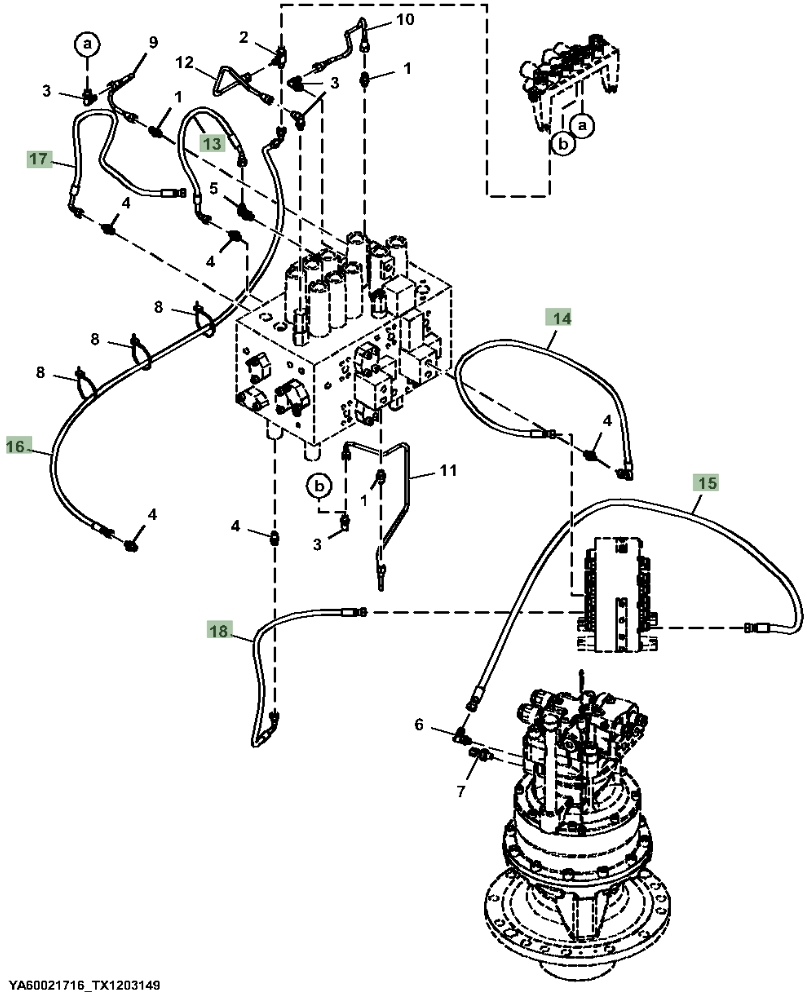

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4656046 before removing the hose.
Repair specifications
- Part number
- 4656046
- Diagram pipe number
- 18
- Installation route
- 中转接头~分配阀下
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 800 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
