- Length
- 6,660 mm
- Specification
- DN5;2层纤维-3;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 公制卡套式
Individual hose record
4401540 Hose Repair Specifications
Excavator · Hitachi · EX330LC-5 · Grease Lines
Finished length3,000 mm
Locate this hose

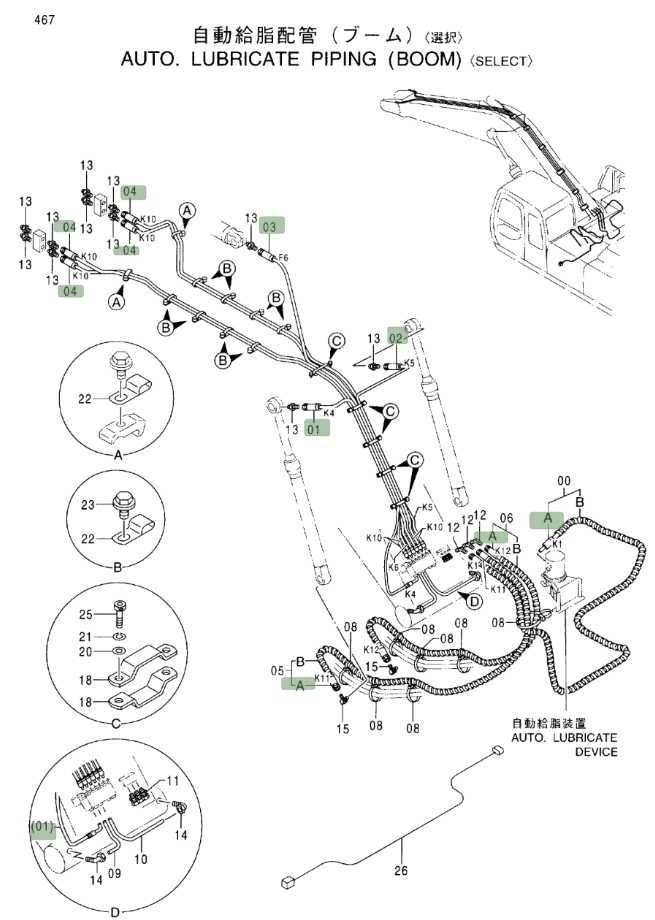

Installation diagram — Pipe No. 00A
Locate Pipe No. 00A in the diagram, then confirm part number 4401540 before removing the hose.
Repair specifications
- Part number
- 4401540
- Diagram pipe number
- 00A
- Installation route
- 黄油泵~大臂(黄油)
- Hose specification
- DN6;1SN-4;10.5MPa
- Finished length
- 3,000 mm
- Working pressure
- 10.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 公制卡套式
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 2
4407364
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
- Length
- 3,400 mm
- Specification
- DN5;2层纤维-3;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 公制卡套式
- Length
- 1,350 mm
- Specification
- DN10;2SN-06;21Mpa
- Left fitting
- 英制锥形外螺纹
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Diagram Pipe No. 12
4257291
Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Length
- 3,600 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
Diagram Pipe No. 11
4289772
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
- Length
- 3,600 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 3,560 mm
- Specification
- DN5;2层纤维-3;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 公制卡套式
- Length
- 3,650 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
