Individual hose record

4437078 Hose Repair Specifications

Excavator · Hitachi · ZX225USLC · Pedal

Finished length3,100 mm

Locate this hose

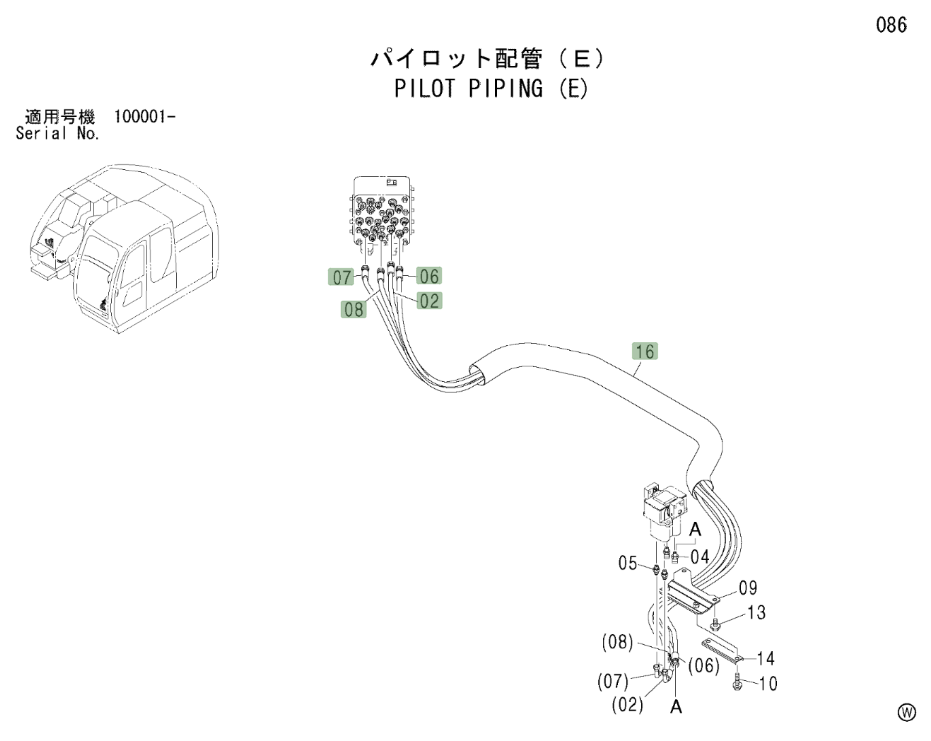

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4437078 before removing the hose.

Hitachi ZX225USLC installation diagram showing hydraulic hose 4437078 at Pipe No. 7 — Hitachi ZX225USLCPart 4437078 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 4437078
Diagram pipe number: 7
Installation route: 行走踏板~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 3,100 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
