Individual hose record
KHJ2107 Hose Repair Specifications
Excavator · Case · CX180B · Solenoid Valve
Finished length2,400 mm
Locate this hose

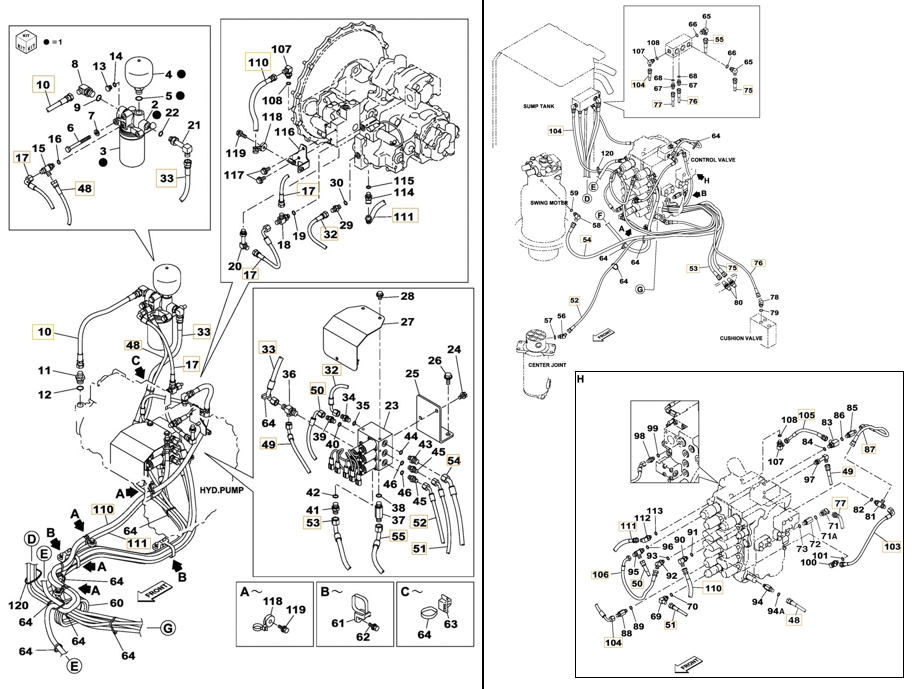

Installation diagram — Pipe No. 53
Locate Pipe No. 53 in the diagram, then confirm part number KHJ2107 before removing the hose.
Repair specifications
- Part number
- KHJ2107
- Diagram pipe number
- 53
- Installation route
- 电磁阀~接头(进回油阀)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,400 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
